| ราคาปกติ |
|
1,500.00 |
| ราคาพิเศษ |
|
1,120.00 |
| รวมภาษี |
|
1,198.40 |
| ลดไป |
|
25.33 % |
|
|
|
- Eaton 5A 700VA Tower
- Technical specifications
- Rating (VA/W) : 700VA/360W
- Format : Tower
- Electrical characteristics
- Technology : Line interactive
- Input voltage ranges without using batteries : 140 – 300 V
- Output
- Output voltage : 230V
- Battery wave form : Stepped sine wave
- Protection : PCBA current sensor (F/W protection)
- Physical
- Dimension D x W x H (mm) : 297 x 101 x 142
- Weight (kg) : 4
- Warranty : 2 Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
1,800.00 |
| ราคาพิเศษ |
|
1,390.00 |
| รวมภาษี |
|
1,487.30 |
| ลดไป |
|
22.78 % |
|
|
|
- Eaton 5A 900VA Tower
- Technical specifications
- Rating (VA/W) : 900VA/480W
- Format : Tower
- Electrical characteristics
- Technology : Line interactive
- Input voltage ranges without using batteries : 140 – 300 V
- Output
- Output voltage : 230V
- Battery wave form : Stepped sine wave
- Protection : PCBA current sensor (F/W protection)
- Physical
- Dimension D x W x H (mm) : 297 x 101 x 142
- Weight (kg) : 4.7
- Warranty : 2 Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
2,990.00 |
| ราคาพิเศษ |
|
1,750.00 |
| รวมภาษี |
|
1,872.50 |
| ลดไป |
|
41.47 % |
|
|
|
- Eaton 5A 1200VA Tower
- Technical specifications
- Rating (VA/W) : 1200VA/650W
- Format : Tower
- Electrical characteristics
- Technology : Line interactive
- Input voltage ranges without using batteries : 140 – 300 V
- Output
- Output voltage : 230V
- Battery wave form : Stepped sine wave
- Protection : PCBA current sensor (F/W protection)
- Physical
- Dimension D x W x H (mm) : 370 x 138 x 165
- Weight (kg) : 6.25
- Warranty : 2 Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
5,100.00 |
| ราคาพิเศษ |
|
3,350.00 |
| รวมภาษี |
|
3,584.50 |
| ลดไป |
|
34.31 % |
|
|
|
- Eaton 5A 1500VA Tower
- Technical specifications
- Rating (VA/W) : 1500VA/900W
- Format : Tower
- Electrical characteristics
- Technology : Line interactive
- Input voltage ranges without using batteries : 140 – 300 V
- Output
- Output voltage : 230V
- Battery wave form : Stepped sine wave
- Protection : PCBA current sensor (F/W protection)
- Physical
- Dimension D x W x H (mm) : 370 x 138 x 165
- Weight (kg) : 10.85
- Warranty : 2 Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
6,900.00 |
| ราคาพิเศษ |
|
4,090.00 |
| รวมภาษี |
|
4,376.30 |
| ลดไป |
|
40.72 % |
|
|
|
- Eaton 5A 2200VA Tower
- Technical specifications
- Rating (VA/W) : 2200VA/1200W
- Format : Tower
- Electrical characteristics
- Technology : Line interactive
- Input voltage ranges without using batteries : 140 – 300 V
- Output
- Output voltage : 230V
- Battery wave form : Stepped sine wave
- Protection : PCBA current sensor (F/W protection)
- Physical
- Dimension D x W x H (mm) : 370 x 138 x 165
- Weight (kg) : 11.7
- Warranty : 2 Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
7,500.00 |
| ราคาพิเศษ |
|
4,900.00 |
| รวมภาษี |
|
5,243.00 |
| ลดไป |
|
34.67 % |
|
|
|
- Eaton 5E 1600i USB G2 Tower
- Technical specifications
- Rating (VA/W) : 1600VA/900W
- Format : Tower
- Electrical characteristics
- Technology : Line interactive
- Input voltage ranges without using batteries : 140 - 300 V
- Input frequency range : 50 / 60 Hz (45 - 65 Hz working range)
- Output
- Output voltage : 230V
- Output connection (IEC models) : 6 IEC C13 outlets
- Physical
- Dimension D x H x W (mm) : 330 x 180 x 133
- Weight (kg) : 8.9
- Warranty : 3 Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
11,500.00 |
| ราคาพิเศษ |
|
7,990.00 |
| รวมภาษี |
|
8,549.30 |
| ลดไป |
|
30.52 % |
|
|
|
- Eaton 9A 1000VA Tower
- Technology : Online Double Conversion UPS
- Format : Tower
- Rating (VA/Watts) : 1000VA/900W
- Connection :
- - Input Connections : IEC C14
- - Output Connections : (4) IEC 320 C13
- Input voltage : 220/ 230/ 240VAC
- Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
- Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
- Communication Ports :
- - RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- - Segment LCD, red colour indication in case of warning & error
- Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
- Dimensions W x H x D : 145 x 230 x 355 mm
- Weight : 9.6 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
19,340.00 |
| ราคาพิเศษ |
|
9,700.00 |
| รวมภาษี |
|
10,379.00 |
| ลดไป |
|
49.84 % |
|
|
|
- Eaton 9E 1000VA UPS Tower
- Technical specifications
- Rating (VA/W) : 1000VA / 800W
- Format : Tower
- Electrical characteristics
- Technology : Online double conversion
- Input voltage ranges without using batteries : 100 – 300V
- Output voltage : 208 / 220 / 230 / 240V ±1%
- Output THDU :
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
14,600.00 |
| ราคาพิเศษ |
|
10,300.00 |
| รวมภาษี |
|
11,021.00 |
| ลดไป |
|
29.45 % |
|
|
|
- Eaton 9A 1000VA Rack2U
- Technology : Online Double Conversion UPS
- Format : Rack 2U
- Rating (VA/Watts) : 1000VA/900W
- Connection :
- - Input Connections : IEC C14
- - Output Connections : (4) IEC 320 C13
- Input voltage : 220/ 230/ 240VAC
- Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
- Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
- Communication Ports :
- - RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- - Segment LCD, red colour indication in case of warning & error
- Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
- Dimensions W x H x D : 438 x 86.5 x 435 mm
- Weight : 12.6 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
22,218.00 |
| ราคาพิเศษ |
|
14,500.00 |
| รวมภาษี |
|
15,515.00 |
| ลดไป |
|
34.74 % |
|
|
|
- Eaton 9A 2000VA Tower
- Technology : Online Double Conversion UPS
- Format : Tower
- Rating (VA/Watts) : 2000VA/1800W
- Connection :
- - Input Connections : IEC C14
- - Output Connections : (4) IEC 320 C13
- Input voltage : 220/ 230/ 240VAC
- Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
- Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
- Communication Ports :
- - RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- - Segment LCD, red colour indication in case of warning & error
- Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
- Dimensions W x H x D : 190 x 325 x 400 mm
- Weight : 17.8 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
29,970.00 |
| ราคาพิเศษ |
|
17,000.00 |
| รวมภาษี |
|
18,190.00 |
| ลดไป |
|
43.28 % |
|
|
|
- Eaton 9A 3000VA Tower
- Technology : Online Double Conversion UPS
- Format : Tower
- Rating (VA/Watts) : 3000VA/2700W
- Connection :
- - Input Connections : IEC C20
- - Output Connections : (6) IEC 320 C13 + (1)C19
- Input voltage : 220/ 230/ 240VAC
- Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
- Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
- Communication Ports :
- - RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- - Segment LCD, red colour indication in case of warning & error
- Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
- Dimensions W x H x D : 190 x 325 x 400 mm
- Weight : 23.5 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
28,500.00 |
| ราคาพิเศษ |
|
17,200.00 |
| รวมภาษี |
|
18,404.00 |
| ลดไป |
|
39.65 % |
|
|
|
- Eaton 9SX 1000IR, 230V, Rackmount 2U
- Technical specifications
- Rating (VA/W) : 1000/900
- Format : Rack
- Electrical characteristics
- Technology : On-line double conversion with PFC (Power Factor Correction) system
- Input Voltage Range : 190-276V without derating (up to 120–276V with derating)
- Frequency Range : 40-70 Hz
- Outlets : (6) IEC-320-C13
- Output Frequency : 50/60 Hz autoselect, frequency converter as standard
- Communication
- Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions (H x W x D, mm) : 86.5 x 438 x 438
- Warranty : 3 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
34,900.00 |
| ราคาพิเศษ |
|
17,900.00 |
| รวมภาษี |
|
19,153.00 |
| ลดไป |
|
48.71 % |
|
|
|
- Eaton 9E 2000VA UPS Tower
- Technical specifications
- Rating (VA/W) : 2000VA / 1600W
- Format : Tower
- Electrical characteristics
- Technology : Online double conversion
- Input voltage ranges without using batteries : 100 – 300V
- Output voltage : 208 / 220 / 230 / 240V ±1%
- Output THDU :
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
25,800.00 |
| ราคาพิเศษ |
|
18,000.00 |
| รวมภาษี |
|
19,260.00 |
| ลดไป |
|
30.23 % |
|
|
|
- Eaton 9A 2000VA Rack2U
- Technology : Online Double Conversion UPS
- Format : Rack 2U
- Rating (VA/Watts) : 2000VA/1800W
- Connection :
- - Input Connections : IEC C14
- - Output Connections : (4) IEC 320 C13
- Input voltage : 220/ 230/ 240VAC
- Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
- Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
- Communication Ports :
- - RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- - Segment LCD, red colour indication in case of warning & error
- Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
- Dimensions W x H x D : 438 x 86.5 x 435 mm
- Weight : 19.3 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
21,700.00 |
| ราคาพิเศษ |
|
18,500.00 |
| รวมภาษี |
|
19,795.00 |
| ลดไป |
|
14.75 % |
|
|
|
- Eaton 9SX1000I, 1000VA 230V
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 1000VA/900W
- Input Connections : 1 IEC C14 (10A)
- Output Connections : 6 IEC C13 (10A) sockets
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 190-276V without derating (up to 120-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 252 x 160 x 387 (mm)
- Weight : 14.8 Kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
27,500.00 |
| ราคาพิเศษ |
|
19,500.00 |
| รวมภาษี |
|
20,865.00 |
| ลดไป |
|
29.09 % |
|
|
|
- Eaton 5PX 1500i RT2U G2
- Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
- Format : RT2U (tower / rack 2U)
- Rating (VA/Watts) : 1500VA / 1500W
- Connection :
- - Input : IEC C14 (10A)
- - Outputs : 8 x IEC C13 (10A)
- - Remote controlled sockets : 2 groups of 2 x IEC C13 (10 A)
- Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V)
- Input frequency Range Without Using Batteries : 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Output Voltages : 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V)
- Output Frequency : 50/60 Hz +/- 0.1 Hz (autosensing)
- Communication Ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF
- - 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
- Communication slot : 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
- Dimensions W x D x H / Weight : 438x448x85.5 mm / 27.8kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
33,000.00 |
| ราคาพิเศษ |
|
20,000.00 |
| รวมภาษี |
|
21,400.00 |
| ลดไป |
|
39.39 % |
|
|
|
- Eaton 9PX 1000i RT2U
- Technology : On-line double conversion with Power Factor Correction (PFC) system
- Format : RT2U (tower/rack 2U)
- Rating (VA/Watts) : 1000VA/1000W
- Connection :
- - Output Connections : 8 IEC C13 (10A) sockets
- - Switched outlet group : 2 outlet groups
- Input voltage : 200/208/220/230/240V
- Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication Ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- - 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
- Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 86.5x440x450 (mm)
- Weight : 17.4 (kg)
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
34,100.00 |
| ราคาพิเศษ |
|
21,200.00 |
| รวมภาษี |
|
22,684.00 |
| ลดไป |
|
37.83 % |
|
|
|
- Eaton 9A 3000VA Rack2U
- Technology : Online Double Conversion UPS
- Format : Rack 2U
- Rating (VA/Watts) : 3000VA/2700W
- Connection :
- - Input Connections : IEC C20
- - Output Connections : (6) IEC 320 C13 + (1)C19
- Input voltage : 220/ 230/ 240VAC
- Input Voltage Range : 176-300V without derating. (Up to 100-176V with derating)
- Output Frequency / THDI : 50/60 Hz, THDI 5 % typical, 7% Max
- Communication Ports :
- - RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
- - Segment LCD, red colour indication in case of warning & error
- Connectivity Card : NMC G1/ AS400 / CMC G1 modbus
- Dimensions W x H x D : 438 x 86.5 x 608 mm
- Weight : 27.9 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
27,130.00 |
| ราคาพิเศษ |
|
23,600.00 |
| รวมภาษี |
|
25,252.00 |
| ลดไป |
|
13.01 % |
|
|
|
- Eaton 5PX 1500i RT2U
- Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
- Configuration : Tower/Rack 2U
- Rating (VA/Watts) : 1500VA/1350W
- Connection :
- - Input : 1 IEC C14 (10A)
- - Outputs : 8 IEC C13 (10A)
- - Switched Outlet Group : 2 outlet groups
- Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
- Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
- Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
- Communication Ports :
- - 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- - 1 mini-terminal block for remote ON/OFF and Remote Power Off
- Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
- Dimensions H x W x D / Weight : 441 x 522 x 86.2 (2U) mm / 27.6kg
- Warranty : 3 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
35,000.00 |
| ราคาพิเศษ |
|
24,500.00 |
| รวมภาษี |
|
26,215.00 |
| ลดไป |
|
30.00 % |
|
|
|
- Eaton 9SX3000I, 3000VA 230V (No Battery)
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 3000VA/2700W
- Input Connections : 1 IEC C20 (16A)
- Output Connections : 8 IEC C13 (10A) sockets + 1 IEC C19 (16A) socket
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 346 x 214 x 412 (mm)
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
54,300.00 |
| ราคาพิเศษ |
|
27,300.00 |
| รวมภาษี |
|
29,211.00 |
| ลดไป |
|
49.72 % |
|
|
|
- Eaton 9SX 2000IR, 230V, Rackmount 2U
- Technical specifications
- Rating (VA/W) : 2000VA/1800W
- Format : Rack
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Frequency Range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Outputs : 8 x IEC C13 (10A) sockets
- Switched Outlet Group : 2 outlet groups
- Communication
- Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions (H x W x D, mm) : 86.5 x 438 x 608
- Weight (kg) : 26.5
- Warranty : 3 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
38,700.00 |
| ราคาพิเศษ |
|
27,500.00 |
| รวมภาษี |
|
29,425.00 |
| ลดไป |
|
28.94 % |
|
|
|
- Eaton 9SX2000I, 2000VA 230V
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 2000VA/1800W
- Input Connections : 1 IEC C14 (10A)
- Output Connections : 8 IEC C13 (10A) sockets
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 346 x 214 x 412 (mm)
- Weight : 33.3 Kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
30,500.00 |
| ราคาพิเศษ |
|
28,600.00 |
| รวมภาษี |
|
30,602.00 |
| ลดไป |
|
6.23 % |
|
|
|
- Eaton 9SX1500I, 1500VA
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 1500 VA/1350W
- Input Connections : 1 IEC C14 (10A)
- Output Connections : 6 IEC C13 (10A) sockets
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 252 x 160 x 437 (mm)
- Weight : 18.5 Kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
40,120.00 |
| ราคาพิเศษ |
|
31,500.00 |
| รวมภาษี |
|
33,705.00 |
| ลดไป |
|
21.49 % |
|
|
|
- Eaton 5PX 2200i RT2U UPS
- Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
- Configuration : Tower/Rack 2U
- Rating (VA/Watts) : 2200VA/1980W
- Connection :
- - Input : 1 IEC C14 (10A)
- - Outputs : 8 IEC C13 (10A) + 1 IEC C19 (16A)
- Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
- Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
- Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
- Communication Ports :
- - 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- - 1 mini-terminal block for remote ON/OFF and Remote Power Off
- Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
- Dimensions H x W x D / Weight : 441 x 522 x 86.2 (2U) mm / 28.5 kg
- Warranty : 3 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
36,900.00 |
| ราคาพิเศษ |
|
33,000.00 |
| รวมภาษี |
|
35,310.00 |
| ลดไป |
|
10.57 % |
|
|
|
- Eaton 5PX 2200i RT2U G2
- Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
- Format : RT2U & RT3U
- Rating (VA/Watts) : 2200VA / 2200W
- Connection :
- - Input : IEC C20 (16A)
- - Outputs : 8 x IEC C13 (10A), 2 x IEC C19 (16A)
- - Remote controlled sockets : 1 group of 2 x IEC C13 (10 A), 1 group of 2 x IEC C13 (10 A) + 1 x IEC C19 (16A)
- Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V)
- Input frequency Range Without Using Batteries : 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Output Voltages : 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V)
- Output Frequency : 50/60 Hz +/- 0.1 Hz (autosensing)
- Communication Ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF
- - 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
- Communication slot : 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
- Dimensions W x D x H / Weight : 438x603x85.5 (RT2U), 438x483x129 (RT3U) / 40.4 (RT2U), 39.7 (RT3U)
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
45,930.00 |
| ราคาพิเศษ |
|
33,500.00 |
| รวมภาษี |
|
35,845.00 |
| ลดไป |
|
27.06 % |
|
|
|
- Eaton 9SX3000I, 3000VA 230V
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 3000VA/2700W
- Input Connections : 1 IEC C20 (16A)
- Output Connections : 8 IEC C13 (10A) sockets + 1 IEC C19 (16A) socket
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 346 x 214 x 412 (mm)
- Weight : 33.4 Kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
55,800.00 |
| ราคาพิเศษ |
|
35,500.00 |
| รวมภาษี |
|
37,985.00 |
| ลดไป |
|
36.38 % |
|
|
|

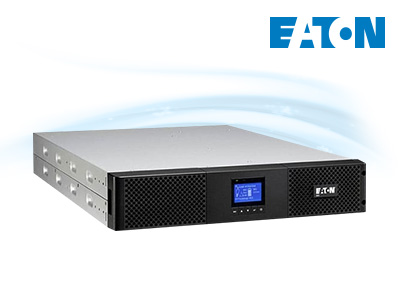

- Eaton 9SX 3000IR, 230V, Rackmount 2U
- Technical specifications
- Rating (VA/W) : 3000VA/2700W
- Format : Rack
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Frequency Range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Input : 1 x IEC C20 (20A)
- Outputs : 8 x IEC C13 (10A) sockets + 1 x IEC 19 (16A) socket
- Switched Outlet Group : 2 outlet groups
- Communication
- Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions (H x W x D, mm) : 86.5 x 438 x 608
- Weight (kg) : 26.5
- Warranty : 3 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
56,500.00 |
| ราคาพิเศษ |
|
37,400.00 |
| รวมภาษี |
|
40,018.00 |
| ลดไป |
|
33.81 % |
|
|
|
- Eaton 9PX 2200i RT2U
- Technology : On-line double conversion with Power Factor Correction (PFC) system
- Format : RT2U (tower/rack 2U) and RT3U (tower/rack 3U)
- Rating (VA/Watts) : 2200VA/2200W
- Connection :
- - Output Connections : 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
- - Switched outlet group : 2 outlet groups
- Input voltage : 200/208/220/230/240V
- Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication Ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- - 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
- Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 2U : 86.5x440x605 / 3U : 130x440x485
- Weight : 25 kg / 24.5 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
51,770.00 |
| ราคาพิเศษ |
|
40,000.00 |
| รวมภาษี |
|
42,800.00 |
| ลดไป |
|
22.74 % |
|
|
|
- Eaton 5PX 3000i RT2U UPS
- Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
- Configuration : RT2U and RT3U
- Rating (VA/Watts) : 3000VA/2700W
- Connection :
- - Input : 1 IEC C14 (10A)
- - Outputs : 8 IEC C13 (10A) + 1 IEC C19 (16A)
- Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
- Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
- Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
- Communication Ports :
- - 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- - 1 mini-terminal block for remote ON/OFF and Remote Power Off
- Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
- Dimensions H x W x D / Weight : 441 x 647 x 86.2 (RT2U) mm / 38.08 kg
- Warranty : 3 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
48,000.00 |
| ราคาพิเศษ |
|
43,500.00 |
| รวมภาษี |
|
46,545.00 |
| ลดไป |
|
9.38 % |
|
|
|
- Eaton 5PX 3000i RT2U G2
- Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
- Format : RT2U & RT3U
- Rating (VA/Watts) : 3000VA / 3000W
- Connection :
- - Input : IEC C20 (16A)
- - Outputs : 8 x IEC C13 (10A), 2 x IEC C19 (16A)
- - Remote controlled sockets : 1 group of 2 x IEC C13 (10 A), 1 group of 2 x IEC C13 (10 A) + 1 x IEC C19 (16A)
- Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V)
- Input frequency Range Without Using Batteries : 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Output Voltages : 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V)
- Output Frequency : 50/60 Hz +/- 0.1 Hz (autosensing)
- Communication Ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF
- - 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
- Communication slot : 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
- Dimensions W x D x H / Weight : 438x603x85.5 (RT2U), 438x483x129 (RT3U) / 40.4 (RT2U), 39.7 (RT3U)
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
85,000.00 |
| ราคาพิเศษ |
|
47,500.00 |
| รวมภาษี |
|
50,825.00 |
| ลดไป |
|
44.12 % |
|
|
|
- Eaton 9PX 3000i RT2U
- Technology : On-line double conversion with Power Factor Correction (PFC) system
- Format : RT2U (tower/rack 2U) and RT3U (tower/rack 3U)
- Rating (VA/Watts) : 3000VA/3000W
- Connection :
- - Output Connections : 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
- - Switched outlet group : 2 outlet groups
- Input voltage : 200/208/220/230/240V
- Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication Ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- - 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
- Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 2U : 86.5x440x605 / 3U : 130x440x485
- Weight : 27.6 kg / 27.4 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
127,300.00 |
| ราคาพิเศษ |
|
59,100.00 |
| รวมภาษี |
|
63,237.00 |
| ลดไป |
|
53.57 % |
|
|
|
- Eaton 9E 6KVA 1:1 Tower
- Technical specifications
- Rating (VA/W) : 6000VA/4800W
- Format : Tower
- Electrical characteristics
- Technology : Online double-conversion
- Input voltage ranges without using batteries : 176-276V without derating
- Output voltage : 220V/230V/240V ±2 %
- Output THDU :
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
99,800.00 |
| ราคาพิเศษ |
|
64,500.00 |
| รวมภาษี |
|
69,015.00 |
| ลดไป |
|
35.37 % |
|
|
|
- Eaton 9E 10KVA 1:1 and 3:1 Tower with supercharger (no battery)
- Technology : Online double conversion
- Format : Tower
- Rating (VA/Watts) : 10kVA/8kW
- Connection :
- - Output Connections : Hardwired
- - Output Frequency : 50/60 Hz autoselect
- Input voltage : 220/230/240V
- Input Voltage Range : 176-276V without derating (up to 110-276V with derating)
- Input frequency range : 50/60 Hz autoselection
- Output voltage/THDU : 220V/230V/240V ±2 %, THDU
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
178,000.00 |
| ราคาพิเศษ |
|
83,000.00 |
| รวมภาษี |
|
88,810.00 |
| ลดไป |
|
53.37 % |
|
|
|
- Eaton 9E 10KVA 1:1 and 3:1 Tower
- Technical specifications
- Rating (VA/W) : 10000/8000
- Format : Tower
- Electrical characteristics
- Technology : Online double-conversion
- Input Voltage Range : 176-276V without derating (up to 110-276V with derating)
- Frequency Range : 45-66 Hz
- Short Circuit Current : 137 A
- Output voltage : 220V/230V/240V ±2 %
- Output THDU :
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
191,500.00 |
| ราคาพิเศษ |
|
87,800.00 |
| รวมภาษี |
|
93,946.00 |
| ลดไป |
|
54.15 % |
|
|
|
- Eaton 9PX 6000i RT6U 3:1 withRack kit and Network card
- Technical specifications
- Rating (VA/W) : 6000VA/5400W
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Nominal voltage : 380/400/415 3:1
- Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
- Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
137,000.00 |
| ราคาพิเศษ |
|
99,500.00 |
| รวมภาษี |
|
106,465.00 |
| ลดไป |
|
27.37 % |
|
|
|
- Eaton DXRT10KI
- Techonology : True online double conversion
- Format : Tower / Rack
- Rating (VA/Watts) : 10KVA/10KW
- Power factor : 1
- Output voltage : 208 / 220 / 230 / 240VAC (default 220VAC)
- Input Voltage Range : 110VAC~275VAC
- Input frequency range : 40~70Hz
- Dimensions W x D x H : 443 x 570 x 87 (mm)
- Weight : 14.5 Kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
238,230.00 |
| ราคาพิเศษ |
|
99,500.00 |
| รวมภาษี |
|
106,465.00 |
| ลดไป |
|
58.23 % |
|
|
|
- Eaton 9PX 8000i RT6U 3:1 with Rack kit and Network card
- Technical specifications
- Rating (VA/W) : 8000VA/7200W
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Nominal voltage : 380/400/415 3:1
- Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
- Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
231,900.00 |
| ราคาพิเศษ |
|
102,500.00 |
| รวมภาษี |
|
109,675.00 |
| ลดไป |
|
55.80 % |
|
|
|
- Eaton 9PX 11000i RT6U with Rack kit
- Technical specifications
- Rating (VA/W) : 11000VA/10000W
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Input Voltage Range : 176-276V without derating (up to 100–276V with derating)
- Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
- Efficiency : Up to 95% in Online mode, 98% in Hi-Efficiency mode
- Connections
- Input : Terminal block (up to 16mm)
- Outputs : Terminal block
- Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
- Communication
- Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
- 4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
- 1 DB15 for parallel operation
- Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
- Dimensions (H x W x D, mm) : 440 x 260 x 700
- Weight (kg) : 86
- Warranty : 2 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
172,300.00 |
| ราคาพิเศษ |
|
120,500.00 |
| รวมภาษี |
|
128,935.00 |
| ลดไป |
|
30.06 % |
|
|
|
- Eaton 9E 20KVA 1:1 and 3:1 Tower with supercharger (no battery)
- Technology : Online double conversion
- Format : Tower
- Rating (VA/Watts) : 20kVA/16kW
- Connection :
- - Output Connections : Hardwired
- - Output Frequency : 50/60 Hz autoselect
- Input voltage : 220/230/240V
- Input Voltage Range : 176-276V without derating (up to 110-276V with derating)
- Input frequency range : 50/60 Hz autoselection
- Output voltage/THDU : 220V/230V/240V ±2 %, THDU
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
252,400.00 |
| ราคาพิเศษ |
|
124,500.00 |
| รวมภาษี |
|
133,215.00 |
| ลดไป |
|
50.67 % |
|
|
|
- Eaton 9PX 11000i RT6U 3:1 with Rack kit and Network card
- Technical specifications
- Rating (VA/W) : 11000VA/10000W
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Nominal voltage : 380/400/415 3:1
- Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
- Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
253,550.00 |
| ราคาพิเศษ |
|
149,500.00 |
| รวมภาษี |
|
159,965.00 |
| ลดไป |
|
41.04 % |
|
|
|
- Eaton 9E 15KVA 1:1 and 3:1 Tower
- Technology : Online double conversion
- Format : Tower
- Rating (VA/Watts) : 15kVA/12kW
- Connection :
- - Output Connections : Hardwired
- - Output Frequency : 50/60 Hz autoselect
- Input voltage : 220/230/240V
- Input Voltage Without Using Batteries : 176-276V without derating (up to 110-276V with derating)
- Input frequency range : 45Hz-66Hz, 50/60Hz autoselection
- Output voltage/THDU : 220V/230V/240V ±2 %, THDU
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
294,900.00 |
| ราคาพิเศษ |
|
175,000.00 |
| รวมภาษี |
|
187,250.00 |
| ลดไป |
|
40.66 % |
|
|
|
- Eaton 9E 20KVA 1:1 and 3:1 Tower
- Technology : Online double conversion
- Format : Tower
- Rating (VA/Watts) : 20kVA/16kW
- Connection :
- - Output Connections : Hardwired
- - Output Frequency : 50/60 Hz autoselect
- Input voltage : 220/230/240V
- Input Voltage Without Using Batteries : 176-276V without derating (up to 110-276V with derating)
- Input frequency range : 45Hz-66Hz, 50/60Hz autoselection
- Output voltage/THDU : 220V/230V/240V ±2 %, THDU
|
|
|
|
|
|
|
|
