Fortinet FortiAP [P/N FAP-221E-V] |
|
|
 |

| |
|
|
| ราคาปกติ |
|
11,900.00 |
| ราคาพิเศษ |
|
7,625.00 |
| รวมภาษี |
|
8,158.75 |
| ลดไป |
|
35.92 % |
|
|
|
FORTINET FortiAP Model FAP-221E-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-221E-V
The FortiAP 221E are medium-density 802.11ac Wave 2 access points. These enterprise-class access points are ideal for medium-density environments such as an office or classroom with performance throughput of up to 867 Mbps. 802.11ac Wave 2 | Dual Radio 2.4 and 5 GHz | 4 Internal Antennas 2x2 MU-MIMO | Up to 400 + 867 Mbps
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 2 + 1 BLE
- Number of Antennas: 4 Internal + 1 Internal BLE
- Antenna Type and Peak Gain: Patch: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
- Maximum Date Rate
Radio 1: up to 400 Mbp
Radio 2: up to 867 Mbps
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces
- 1x10/100/1000 Base-T RJ45
- Power over Ethernet (PoE): IEEE 802.3af
- Simultaneous SSIDs: 16 (14 if background scanning enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/DeviceAuthentication: WPATM, WPA2TM, and WPA3TM with 802.1x or preshared key, WEP,Web Captive Portal, MAC blocklist & allowlist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
- Including 1-port Gigabit PoE power injector, 802.3af 15.4 W, 10/100/1000
สินค้าพร้อมจัดส่งทันที
หมายเหตุ: ราคานี้ไม่รวมค่าติดตั้ง |
|
|
|
|
|
| |
Fortinet FortiAP [P/N FAP-223E-V] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
12,900.00 |
| ราคาพิเศษ |
|
8,450.00 |
| รวมภาษี |
|
9,041.50 |
| ลดไป |
|
34.50 % |
|
|
|
FORTINET FortiAP Model FAP-223E-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-223E-V
The Fortinet FortiAP 223E-V is an indoor wireless access point with dual radio capabilities, supporting both 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n/ac Wave 2) frequencies. It features 2x2 MIMO with 2 spatial streams and includes external antennas. The device has one Gigabit Ethernet port and supports 802.3af PoE. It also includes a Bluetooth/BLE radio for scanning and iBeacon advertisement.
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 2 + 1 BLE
- Number of Antennas: 4 External (RP-SMA)
- Antenna Type and Peak Gain: Patch: Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
- Maximum Date Rate
Radio 1: up to 400 Mbp
Radio 2: up to 867 Mbps
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces
- 1x10/100/1000 Base-T RJ45
- Power over Ethernet (PoE): IEEE 802.3af
- Simultaneous SSIDs: 16 (14 if background scanning enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/Device Authentication: WPATM, WPA2TM, and WPA3TM with 802.1x or preshared key, WEP,Web Captive Portal, MAC blocklist & allowlist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
- Including 1-port Gigabit PoE power injector, 802.3af 15.4 W, 10/100/1000
หมายเหตุ: ราคานี้ไม่รวมค่าติดตั้ง |
|
|
|
|
|
| |
Fortinet FortiAP [P/N FAP-231G-V] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
24,125.00 |
| ราคาพิเศษ |
|
13,250.00 |
| รวมภาษี |
|
14,177.50 |
| ลดไป |
|
45.08 % |
|
|
|
FORTINET FortiAP Model FAP-231G-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-231G-V
Fortinet FortiAP 231G wireless access point designed for indoor use.
These enterprise class extended frequency band Wi-Fi 6E indoor APs provide three radios and two spatial streams.
These access points support the 6 GHz band, OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. The APs can provide 24/7 scanning across all bands while still providing access on both the 2.4 GHz and 5 GHz bands or 2.4 Ghz and dual 5 GHz service or the AP can be configured to provide simultaneous access on 2.4 GHz, 5 GHz,
and the 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and locationing applications.
This access point is managed centrally by a FortiGate security appliance or through FortiLAN Cloud.
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 3 + 1 BLE
- Number of Antennas: Internal x2 Dual band Wi-Fi + x2 Tri-band Wi-Fi & Scanning + 1 Single band 2.4GHz BLE/ZigBee
- Antenna Type and Peak Gain: PIFA antenna.
Dual band: 4.5 dBi for 2.4GHz, 5.5 dBi for 5 GHz
Tr-band: 4.5 dBi for 2.4GHz, 5.5 dBi for 5 GHz & 5.5dBi for 6GHz band
BLE antenna: 4.0dBi for 2.4Ghz
- Maximum Date Rate
Radio 1: up to 574 Mbps
Radio 2: up to 1201 Mbps
Radio 3: Up to 2401 Mbps
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertizement @10 dBm max TX power
Interfaces
- 1 100/1000/2500 Base-T RJ45, 1 10/100/1000 Base-T RJ45, 1x Type 3.0 USB, 1 RS-232 RJ45 Serial Port
- Power over Ethernet (PoE): 1 x 802.3at PoE default
- Simultaneous SSIDs: Up to 8 per client serving radio (7 if background scanning is enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/Device Authentication: WPATM, WPA2TM, and WPA3TM with 802.1x or preshared key, WEP,Web Captive Portal, MAC blocklist & allowlist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
หมายเหตุ: ราคานี้ไม่รวมค่าติดตั้ง |
|
|
|
|
|
| |
Fortinet FortiAP [P/N FAP-233G-V] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
36,000.00 |
| ราคาพิเศษ |
|
19,900.00 |
| รวมภาษี |
|
21,293.00 |
| ลดไป |
|
44.72 % |
|
|
|
FORTINET FortiAP Model FAP-233G-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-233G-V
Fortinet FortiAP 233G wireless access point designed for indoor use.
These enterprise class extended frequency band Wi-Fi 6E indoor APs provide three radios and two spatial streams.
These access points support the 6 GHz band, OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. The APs can provide 24/7 scanning across all bands while still providing access on both the 2.4 GHz and 5 GHz bands or 2.4 Ghz and dual 5 GHz service or the AP can be configured to provide simultaneous access on 2.4 GHz, 5 GHz,
and the 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and locationing applications.
This access point is managed centrally by a FortiGate security appliance or through FortiLAN Cloud.
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 3 + 1 BLE
- Number of Antennas: External x2 Dual band Wi-Fi + x2 Tri-band Wi-Fi and Scanning (permanently attached) + Internal 1 Single band 2.4GHz BLE/ZigBee
- Antenna Type Support:
RP-SMA (2 total)
Dual Band Antenna (2)
- Antenna Type and Peak Gain: Omni Directional antenna.
Dual band: 4.5 dBi for 2.4GHz, 4.5 dBi for 5 GHz.
Tr-band: 4.5 dBi for 2.4GHz, 4.5 dBi for 5 GHz and 4.5dBi for 6GHz band BLE Omni Directional antenna.
Single band: 4.0dBi for 2.4GHz
- Maximum Date Rate
Radio 1: up to 574 Mbps
Radio 2: up to 1201 Mbps
Radio 3: Up to 2401 Mbps
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertizement @10 dBm max TX power
Interfaces
- 1 100/1000/2500 Base-T RJ45, 1 10/100/1000 Base-T RJ45, 1x Type 3.0 USB, 1 RS-232 RJ45 Serial Port
- Power over Ethernet (PoE): 1 x 802.3at PoE default
- Simultaneous SSIDs: Up to 8 per client serving radio (7 if background scanning is enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/Device Authentication: WPATM, WPA2TM, and WPA3TM with 802.1x or preshared key, WEP,Web Captive Portal, MAC blocklist & allowlist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
หมายเหตุ: ราคานี้ไม่รวมค่าติดตั้ง |
|
|
|
|
|
| |
Fortinet FortiAP [P/N FAP-431F-V] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
35,900.00 |
| ราคาพิเศษ |
|
21,900.00 |
| รวมภาษี |
|
23,433.00 |
| ลดไป |
|
39.00 % |
|
|
|
FORTINET FortiAP Model FAP-431F-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-431F-V
The Fortinet FortiAP 431F is an enterprise-class, indoor wireless access point (AP) that supports the Wi-Fi 6 standard (802.11ax). It features a tri-radio design, including two 4x4 MU-MIMO radios for 5 GHz and one 2x2 MU-MIMO radio for 2.4 GHz and 5 GHz. It also includes a Bluetooth Low Energy (BLE) radio for location-based services and beacons.
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 3 + 1 BLE
- Number of Antennas: 5 Internal + 1 BLE Internal
- Antenna Type and Peak Gain: PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
- Maximum Date Rate
Radio 1: up to 1147 Mbps
Radio 2: up to 2402 Mbps
Radio 3: scan only
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power
Interfaces
- 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port
- Power over Ethernet (PoE): 802.3at PoE default, 1 port powered by 802.3at or 2 ports powered by 802.3af
- Simultaneous SSIDs: Up to 16 (14 if background scanning enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/Device Authentication: WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP,
Web Captive Portal, MAC blocklist and allowlist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
- Including 1-port Gigabit PoE power injector, 802.3af 15.4 W, 10/100/1000
หมายเหตุ: ราคานี้ไม่รวมค่าติดตั้ง |
|
|
|
|
|
| |

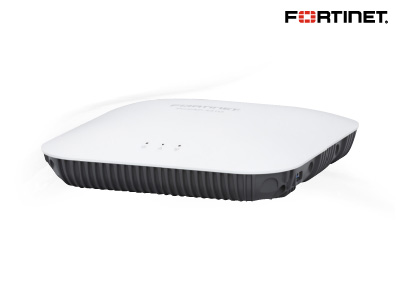

Fortinet FortiAP Model FAP-231K [P/N FAP-231K-V] |
|
|
|
| |
|
|
| ราคาปกติ |
|
33,500.00 |
| ราคาพิเศษ |
|
25,900.00 |
| รวมภาษี |
|
27,713.00 |
| ลดไป |
|
22.69 % |
|
|
|
FORTINET FortiAP Model FAP-231K-V
Fortinet FortiAP 231K wireless access point designed for indoor use.
This Wi-Fi 7 (IEEE 802.11be) enterprise-class access point is built for small to mid-size environments such as offices, schools, and branch networks.
The FAP-231K supports tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz frequencies with three radios and two spatial streams, delivering the next-generation performance of Wi-Fi 7.
It includes a multi-gigabit Ethernet port (up to 5 Gbps) for high-speed connectivity and built-in BLE / ZigBee for IoT, beacon, and location-based services.
The access point can be centrally managed by a FortiGate security appliance or through FortiLAN Cloud / FortiEdge Cloud, providing unified management for both wired and wireless networks.
Hardware
-Hardware Type: Indoor AP
-Number of Radios: 3 + 1 BLE / ZigBee
-Number of Antennas: Internal Tri-Band Design for 2.4 GHz, 5 GHz and 6 GHz Bands
-Antenna Type and Peak Gain: Integrated PIFA antenna design with gain optimized for multi-band operation
-Maximum Data Rate: 2.4 GHz up to 688 Mbps, 5 GHz up to 2.88 Gbps, 6 GHz up to 5.76 Gbps-
-Multi-Link Operation (MLO): Supported – Simultaneous transmission across multiple bands
-BLE / ZigBee Radio: Integrated Bluetooth Low Energy and ZigBee for IoT / beacon applications
Interfaces
-1 × RJ-45 Port (100 / 1000 / 2500 / 5000 Base-T Ethernet)
-Power over Ethernet (PoE): IEEE 802.3at / PoE+ compliant
-Simultaneous SSIDs: Up to 8 per radio (7 if background scanning is enabled)
-EAP Type(s): EAP-TLS, EAP-TTLS / MSCHAPv2, PEAPv0 / EAP-MSCHAPv2, PEAPv1 / EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
-User / Device Authentication: WPA, WPA2, and WPA3 with 802.1X or pre-shared key, Web Captive Portal, MAC blocklist & allowlist
-IEEE Standards: 802.11a, b, g, n, ac, ax, be, 802.11i, r, v, w, 802.1X, 802.1Q, 802.3at, 802.3az
Security and Management
-Managed centrally through FortiGate Wireless Controller or FortiLAN / FortiEdge Cloud management platforms
-Integration with Fortinet Security Fabric for centralized wired and wireless security control
-Policy-based management with Single-pane-of-glass visibility for LAN and WLAN
-Advanced security protection through FortiGuard services (IPS, Firewall, Web Filtering, Application Control)
-Designed for Secure Access and Zero Trust Network Architectures
-Limited Lifetime Warranty by Fortinet
หมายเหตุ: ราคานี้ไม่รวมค่าติดตั้ง |
|
|
|
|
|
|
|
