| ราคาปกติ |
|
28,500.00 |
| ราคาพิเศษ |
|
17,200.00 |
| รวมภาษี |
|
18,404.00 |
| ลดไป |
|
39.65 % |
|
|
|
- Eaton 9SX 1000IR, 230V, Rackmount 2U
- Technical specifications
- Rating (VA/W) : 1000/900
- Format : Rack
- Electrical characteristics
- Technology : On-line double conversion with PFC (Power Factor Correction) system
- Input Voltage Range : 190-276V without derating (up to 120–276V with derating)
- Frequency Range : 40-70 Hz
- Outlets : (6) IEC-320-C13
- Output Frequency : 50/60 Hz autoselect, frequency converter as standard
- Communication
- Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions (H x W x D, mm) : 86.5 x 438 x 438
- Warranty : 3 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
21,700.00 |
| ราคาพิเศษ |
|
18,500.00 |
| รวมภาษี |
|
19,795.00 |
| ลดไป |
|
14.75 % |
|
|
|

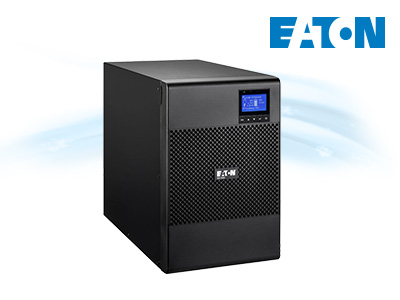

- Eaton 9SX1000I, 1000VA 230V
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 1000VA/900W
- Input Connections : 1 IEC C14 (10A)
- Output Connections : 6 IEC C13 (10A) sockets
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 190-276V without derating (up to 120-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 252 x 160 x 387 (mm)
- Weight : 14.8 Kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
35,000.00 |
| ราคาพิเศษ |
|
24,500.00 |
| รวมภาษี |
|
26,215.00 |
| ลดไป |
|
30.00 % |
|
|
|
- Eaton 9SX3000I, 3000VA 230V (No Battery)
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 3000VA/2700W
- Input Connections : 1 IEC C20 (16A)
- Output Connections : 8 IEC C13 (10A) sockets + 1 IEC C19 (16A) socket
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 346 x 214 x 412 (mm)
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
54,300.00 |
| ราคาพิเศษ |
|
27,300.00 |
| รวมภาษี |
|
29,211.00 |
| ลดไป |
|
49.72 % |
|
|
|
- Eaton 9SX 2000IR, 230V, Rackmount 2U
- Technical specifications
- Rating (VA/W) : 2000VA/1800W
- Format : Rack
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Frequency Range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Outputs : 8 x IEC C13 (10A) sockets
- Switched Outlet Group : 2 outlet groups
- Communication
- Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions (H x W x D, mm) : 86.5 x 438 x 608
- Weight (kg) : 26.5
- Warranty : 3 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
38,700.00 |
| ราคาพิเศษ |
|
27,500.00 |
| รวมภาษี |
|
29,425.00 |
| ลดไป |
|
28.94 % |
|
|
|
- Eaton 9SX2000I, 2000VA 230V
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 2000VA/1800W
- Input Connections : 1 IEC C14 (10A)
- Output Connections : 8 IEC C13 (10A) sockets
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 346 x 214 x 412 (mm)
- Weight : 33.3 Kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
30,500.00 |
| ราคาพิเศษ |
|
28,600.00 |
| รวมภาษี |
|
30,602.00 |
| ลดไป |
|
6.23 % |
|
|
|
- Eaton 9SX1500I, 1500VA
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 1500 VA/1350W
- Input Connections : 1 IEC C14 (10A)
- Output Connections : 6 IEC C13 (10A) sockets
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 252 x 160 x 437 (mm)
- Weight : 18.5 Kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
45,930.00 |
| ราคาพิเศษ |
|
33,500.00 |
| รวมภาษี |
|
35,845.00 |
| ลดไป |
|
27.06 % |
|
|
|
- Eaton 9SX3000I, 3000VA 230V
- Techonology : On-line double-conversion with Power Factor Correction (PFC) system
- Format : Tower
- Rating (VA/Watts) : 3000VA/2700W
- Input Connections : 1 IEC C20 (16A)
- Output Connections : 8 IEC C13 (10A) sockets + 1 IEC C19 (16A) socket
- Switched Outlet Group : 2 outlet groups
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- - 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 346 x 214 x 412 (mm)
- Weight : 33.4 Kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
55,800.00 |
| ราคาพิเศษ |
|
35,500.00 |
| รวมภาษี |
|
37,985.00 |
| ลดไป |
|
36.38 % |
|
|
|

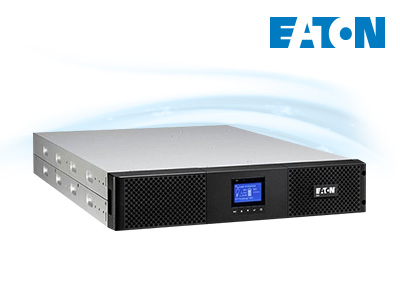

- Eaton 9SX 3000IR, 230V, Rackmount 2U
- Technical specifications
- Rating (VA/W) : 3000VA/2700W
- Format : Rack
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
- Frequency Range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Input : 1 x IEC C20 (20A)
- Outputs : 8 x IEC C13 (10A) sockets + 1 x IEC 19 (16A) socket
- Switched Outlet Group : 2 outlet groups
- Communication
- Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
- 1 mini-terminal block for Output relay
- Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Dimensions (H x W x D, mm) : 86.5 x 438 x 608
- Weight (kg) : 26.5
- Warranty : 3 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
|
