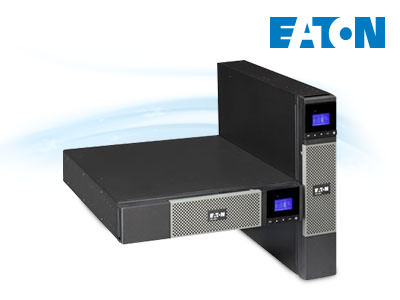

Eaton 5PX 1500i RT2U
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration : Tower/Rack 2U
Rating (VA/Watts) : 1500VA/1350W
Connection : - Input : 1 IEC C14 (10A)
- Outputs : 8 IEC C13 (10A)
- Switched Outlet Group : 2 outlet groups
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports : - 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions H x W x D / Weight : 441 x 522 x 86.2 (2U) mm / 27.6kg
Warranty : 3 Yrs On-Site Service by Eaton (Thailand)
Eaton 5PX 2200i RT2U UPS [P/N 9210-73028]
ราคาปกติ
40,120.00
ราคาพิเศษ
31,500.00
รวมภาษี
33,705.00
ลดไป
21.49 %
POINT
630.00

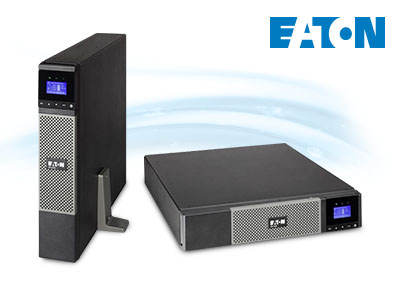

Eaton 5PX 2200i RT2U UPS
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration : Tower/Rack 2U
Rating (VA/Watts) : 2200VA/1980W
Connection : - Input : 1 IEC C14 (10A)
- Outputs : 8 IEC C13 (10A) + 1 IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports : - 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions H x W x D / Weight : 441 x 522 x 86.2 (2U) mm / 28.5 kg
Warranty : 3 Yrs On-Site Service by Eaton (Thailand)
Eaton 5PX 3000i RT2U UPS [P/N 9210-83113]
ราคาปกติ
46,770.00
ราคาพิเศษ
36,500.00
รวมภาษี
39,055.00
ลดไป
21.96 %
POINT
730.00
Eaton 5PX 3000i RT2U UPS
Topology : Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration : RT2U and RT3U
Rating (VA/Watts) : 3000VA/2700W
Connection : - Input : 1 IEC C14 (10A)
- Outputs : 8 IEC C13 (10A) + 1 IEC C19 (16A)
Input Voltage Without Using Batteries : 160V-294V (adjustable to 150V-294V) 47 to 70Hz (50 Hz system)
Input frequency Range Without Using Batteries : 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output Voltages : 230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V)
Output Frequency : 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports : - 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Dimensions H x W x D / Weight : 441 x 647 x 86.2 (RT2U) mm / 38.08 kg
Warranty : 3 Yrs On-Site Service by Eaton (Thailand)
