H3C S5130S-10P-EI [P/N LS-5130S-10P-EI-GL] |
|
|
 |

| |
|
|
| ราคาปกติ |
|
19,900.00 |
| ราคาพิเศษ |
|
19,200.00 |
| รวมภาษี |
|
20,544.00 |
| ลดไป |
|
3.52 % |
|
|
|
H3C S5130S-10P-EI-GL L2 Ethernet Switch
8*10/100/1000Base-T Ports
2*1000Base-X SFP Ports,(AC)
Switching capacity : 20Gbps
Forwarding Capacity : 15Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 7W, MAX: AC: 12W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC : Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 266×161×43.6 mm
Weight : ≤1.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-12TP-EI [P/N LS-5130S-12TP-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
21,500.00 |
| ราคาพิเศษ |
|
20,400.00 |
| รวมภาษี |
|
21,828.00 |
| ลดไป |
|
5.12 % |
|
|
|
H3C S5130S-12TP-EI-GL L2 Ethernet Switch
8*10/100/1000BASE-T Ports, 2*GE Combo Ports
4*1000BASE-X SFP Ports,(AC)
Switching capacity : 24Gbps
Forwarding Capacity : 18Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 8W, MAX: AC: 14W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 266×161×43.6 mm
Weight : ≤1.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-10P-HPWR-EI [P/N LS-5130S-10P-HPWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
29,900.00 |
| ราคาพิเศษ |
|
27,200.00 |
| รวมภาษี |
|
29,104.00 |
| ลดไป |
|
9.03 % |
|
|
|
H3C S5130S-10P-HPWR-EI-GL L2 Ethernet Switch
8*10/100/1000BASE-T PoE+ Ports(AC 125W)
2*1000BASE-X SFP Ports,(AC)
Switching capacity : 20Gbps
Forwarding Capacity : 15Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN : AC: 13W, MAX : AC : 153W (PoE 125W）
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC : Rated voltage range : 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 330×230×43.6 mm
Weight : ≤2.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-20P-EI [P/N LS-5130S-20P-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
30,500.00 |
| ราคาพิเศษ |
|
29,000.00 |
| รวมภาษี |
|
31,030.00 |
| ลดไป |
|
4.92 % |
|
|
|
H3C S5130S-20P-EI-GL L2 Ethernet Switch
16*10/100/1000BASE-T Ports
4*1000BASE-X SFP Ports,(AC)
Switching capacity : 40Gbps
Forwarding Capacity : 30Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 9W, MAX: AC: 19W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 330×230×43.6 mm
Weight : ≤2kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-12TP-HPWR-EI [P/N LS-5130S-12TP-HPWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
30,500.00 |
| ราคาพิเศษ |
|
29,000.00 |
| รวมภาษี |
|
31,030.00 |
| ลดไป |
|
4.92 % |
|
|
|
H3C S5130S-12TP-HPWR-EI-GL L2 Ethernet Switch
8*10/100/1000BASE-T PoE+ Ports(AC 125W), 2*GE Combo Ports
4*1000BASE-X SFP Ports, (AC)
Switching capacity : 24Gbps
Forwarding Capacity : 18Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN:AC: 14W, MAX:AC: 156W (PoE 125W）
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 330×230×43.6 mm
Weight : ≤3kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28P-EI [P/N LS-5130S-28P-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
32,500.00 |
| ราคาพิเศษ |
|
31,700.00 |
| รวมภาษี |
|
33,919.00 |
| ลดไป |
|
2.46 % |
|
|
|
H3C S5130S-28P-EI-GL L2 Ethernet Switch
24*10/100/1000BASE-T Ports
4*1000BASE-X Ports,(AC)
Switching capacity : 56Gbps
Forwarding Capacity : 42Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC:9W MAX: AC:23W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×160×43.6 mm
Weight : ≤2.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28TP-EI [P/N LS-5130S-28TP-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
37,500.00 |
| ราคาพิเศษ |
|
36,000.00 |
| รวมภาษี |
|
38,520.00 |
| ลดไป |
|
4.00 % |
|
|
|
H3C S5130S-28TP-EI-GL L2 Ethernet Switch
24*10/100/1000Base-T Ports
2*GE Combo Ports
2*100/1000Base-X SFP Combo Ports
2*1000Base-X SFP Ports, (AC)
Switching capacity : 56Gbps
Forwarding Capacity : 42Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC:10W, MAX: AC:24W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×160×43.6 mm
Weight : ≤ 2kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-20P-PWR-EI [P/N LS-5130S-20P-PWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
39,500.00 |
| ราคาพิเศษ |
|
38,500.00 |
| รวมภาษี |
|
41,195.00 |
| ลดไป |
|
2.53 % |
|
|
|
H3C S5130S-20P-PWR-EI-GL L2 Ethernet Switch
16*10/100/1000BASE-T PoE+ Ports (AC 185W)
4*1000BASE-X SFP Ports, (AC)
Switching capacity : 40Gbps
Forwarding Capacity : 30Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 18W, MAX: AC: 223W (PoE 170W)
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 330×230×43.6 mm
Weight : ≤3kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28S-LI [P/N LS-5130S-28S-LI-GL] |
|
|
|
|
| |
H3C S5130S-16S-PWR-EI [P/N LS-5130S-16S-PWR-EI] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
41,500.00 |
| ราคาพิเศษ |
|
40,700.00 |
| รวมภาษี |
|
43,549.00 |
| ลดไป |
|
1.93 % |
|
|
|
H3C S5130S-16S-PWR-EI L2 Ethernet Switch
12*10/100/1000Base-T PoE+ Ports
2*10/100/1000Base-T Ports
2*1G/10GBase-X SFP Plus Ports,(AC)
Switching capacity : 68Gbps
Forwarding Capacity : 51Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 14W, MAX: AC: 157W (PoE 125W）
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 300*260*43.6mm
Weight : ≤ 2.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28P-PWR-EI [P/N LS-5130S-28P-PWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
44,500.00 |
| ราคาพิเศษ |
|
43,050.00 |
| รวมภาษี |
|
46,063.50 |
| ลดไป |
|
3.26 % |
|
|
|
H3C S5130S-28P-PWR-EI-GL L2 Ethernet Switch
24*10/100/1000BASE-T PoE+ Ports(AC 185W)
4*1000BASE-X Ports,(AC)
Switching capacity : 56Gbps
Forwarding Capacity : 42Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 19W, MAX: AC: 230W (PoE 170W)
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×260×43.6 mm
Weight : ≤4kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-10MS-UPWR-EI [P/N LS-5130S-10MS-UPWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
49,000.00 |
| ราคาพิเศษ |
|
47,100.00 |
| รวมภาษี |
|
50,397.00 |
| ลดไป |
|
3.88 % |
|
|
|
H3C S5130S-10MS-UPWR-EI-GL L2 Ethernet Switch
8*1G/2.5GBase-T(UPoE) Ports
2*1G/10GBase-X SFP Plus Ports,(AC/DC)
Switching capacity : 80Gbps
Forwarding Capacity : 60Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : Min:AC:22.2 DC:17.38, MAX:AC:447 (PoE 370) DC:794.2 (PoE 740)
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 300*260*43.6mm
Weight : ≤3.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28P-HPWR-EI [P/N LS-5130S-28P-HPWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
48,900.00 |
| ราคาพิเศษ |
|
47,500.00 |
| รวมภาษี |
|
50,825.00 |
| ลดไป |
|
2.86 % |
|
|
|
H3C S5130S-28P-HPWR-EI-GL L2 Ethernet Switch
24*10/100/1000BASE-T PoE+ Ports (AC 370W, DC 740W)
4*100/1000BASE-X Ports
4*GE Combo Ports, (AC/DC)
Switching capacity : 56Gbps
Forwarding Capacity : 42Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 23W DC:16W, MAX: AC: 446W (PoE 370W) DC:790W (PoE 740W)
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range - 54V～-57V DC
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×260×43.6 mm
Weight : ≤ 4.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28ST-EI [P/N LS-5130S-28ST-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
48,900.00 |
| ราคาพิเศษ |
|
47,600.00 |
| รวมภาษี |
|
50,932.00 |
| ลดไป |
|
2.66 % |
|
|
|
H3C S5130S-28ST-EI-GL L2 Ethernet Switch
24*10/100/1000Base-T Ports
2*10G BASEX SFP+ Ports
2*1/2.5/5/10G BASE-T Ports, (AC)
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC:14.5W, MAX: AC:33W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440*160*43.6 mm
Weight : ≤ 2.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28S-EI [P/N LS-5130S-28S-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
51,500.00 |
| ราคาพิเศษ |
|
49,850.00 |
| รวมภาษี |
|
53,339.50 |
| ลดไป |
|
3.20 % |
|
|
|
H3C S5130S-28S-EI-GL L2 Ethernet Switch
24*10/100/1000BASE-T Ports
4*1G/10G BASE-X SFP Plus Ports,(AC)
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC:10W, MAX: AC:24W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×160×43.6 mm
Weight : ≤2.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-52P-EI [P/N LS-5130S-52P-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
60,500.00 |
| ราคาพิเศษ |
|
58,900.00 |
| รวมภาษี |
|
63,023.00 |
| ลดไป |
|
2.64 % |
|
|
|
H3C S5130S-52P-EI-GL L2 Ethernet Switch
48*10/100/1000BASE-T Ports
4*1000BASE-X SFP Ports, (AC)
Switching capacity : 104Gbps
Forwarding Capacity : 78Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC:18W, MAX: AC:41W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×230×43.6 mm
Weight : ≤ 3.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |

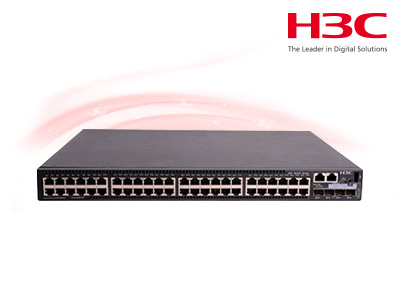

H3C S5130S-52S-LI [P/N LS-5130S-52S-LI-GL] |
|
|
|
|
| |
H3C S5130S-28S-PWR-EI [P/N LS-5130S-28S-PWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
62,900.00 |
| ราคาพิเศษ |
|
61,200.00 |
| รวมภาษี |
|
65,484.00 |
| ลดไป |
|
2.70 % |
|
|
|
H3C S5130S-28S-PWR-EI-GL L2 Ethernet Switch
24*10/100/1000BASE-T PoE+ Ports (AC 185W)
4*1G/10G BASE-X SFP Plus Ports, (AC)
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 20W, MAX: AC: 235W (PoE 170W)
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×260×43.6 mm
Weight : ≤ 4kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28PS-EI [P/N LS-5130S-28PS-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
63,900.00 |
| ราคาพิเศษ |
|
62,300.00 |
| รวมภาษี |
|
66,661.00 |
| ลดไป |
|
2.50 % |
|
|
|
H3C S5130S-28PS-EI-GL L2 Ethernet Switch
24*10/100/1000BASE-T Ports
8*SFP Combo Ports
4*10G BASEX SFP+ Ports, (AC/DC)
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 14.5W DC: 14W, MAX: AC: 33W DC: 32W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440*360*43.6 mm
Weight : ≤ 5.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-52TP-EI [P/N LS-5130S-52TP-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
65,000.00 |
| ราคาพิเศษ |
|
63,500.00 |
| รวมภาษี |
|
67,945.00 |
| ลดไป |
|
2.31 % |
|
|
|
H3C S5130S-52TP-EI-GL L2 Ethernet Switch
48*10/100/1000Base-T Ports
2*GE Combo Ports
2*100/1000Base-X SFP Combo Ports
2*1000Base-X SFP Ports, (AC)
Switching capacity : 104Gbps
Forwarding Capacity : 75Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC:20W, MAX: AC:42W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×230×43.6 mm
Weight : ≤ 3.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28ST-PWR-EI [P/N LS-5130S-28ST-PWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
65,000.00 |
| ราคาพิเศษ |
|
63,500.00 |
| รวมภาษี |
|
67,945.00 |
| ลดไป |
|
2.31 % |
|
|
|
H3C S5130S-28ST-PWR-EI-GL L2 Ethernet Switch
24*10/100/1000Base-T Ports
2*10G BASE-X SFP+ Ports
2*1/2.5/5/10G BASE-T Ports, (PoE+,AC)
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 24.5W, MAX:AC: 420W (PoE 370W)
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440*320*43.6 mm
Weight : ≤ 4.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28S-HPWR-EI [P/N LS-5130S-28S-HPWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
69,500.00 |
| ราคาพิเศษ |
|
67,900.00 |
| รวมภาษี |
|
72,653.00 |
| ลดไป |
|
2.30 % |
|
|
|
H3C S5130S-28S-HPWR-EI-GL L2 Ethernet Switch
24*10/100/1000BASE-T PoE+(Including 4*SFP Combo) Ports
4*1G/10GBASE-X SFP Plus Ports, (AC/DC)
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 24W DC: 17W, MAX: AC: 451W (PoE 370W) DC:793W (PoE 740W)
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×260×43.6 mm
Weight : ≤ 4.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28S-HI [P/N LS-5130S-28S-HI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
72,000.00 |
| ราคาพิเศษ |
|
70,000.00 |
| รวมภาษี |
|
74,900.00 |
| ลดไป |
|
2.78 % |
|
|
|
H3C S5130S-28S-HI-GL Ethernet Switch
24*10/100/1000BASE-T Ports
8*100/1000BASE-X SFP Combo Ports
4*1G/10G BASE-X SFP Plus Ports, dual power supply slots
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Console port
- 1 × RJ-45 Out of Band console port
- 1 × Micro-USB(Type B) console port
- Only the Micro-USB console port is available when you connect both ports.
Power consumption : Single AC: 34W, Single DC: 36W, Dual AC: 39W, Dual DC: 44W
VLAN : Port-based (up to 4094 VLANs), MAC-based, Protocol-based, QinQ and selective QinQ, Mapping, Voice, GVRP, Tagging, Jumbo frame support
Dimensions (W × D x H) : 440×360×43.6 mm
Weight : ≤ 6kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28S-PWR-HI [P/N LS-5130S-28S-PWR-HI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
78,000.00 |
| ราคาพิเศษ |
|
76,100.00 |
| รวมภาษี |
|
81,427.00 |
| ลดไป |
|
2.44 % |
|
|
|
H3C S5130S-28S-PWR-HI-GL Ethernet Switch
24*10/100/1000BASE-T PoE+ Ports
4*100/1000BASE-X SFP Combo Ports
4*1G/10G BASE-X SFP Plus Ports, dual power supply slots
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Console port
- 1 × RJ-45 Out of Band console port
- 1 × Micro-USB(Type B) console port
- Only the Micro-USB console port is available when you connect both ports
Power consumption : Single AC: Upto 898W (including 810W PoE), Dual AC : Upto 905W (including 810W PoE)
VLAN : Port-based (up to 4094 VLANs), MAC-based, Protocol-based, QinQ and selective QinQ, Mapping, Voice, GVRP, Tagging, Jumbo frame support
Dimensions (W × D x H) : 440×460×43.6 mm
Weight : ≤ 8.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28C-HI [P/N LS-5130S-28C-HI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
78,500.00 |
| ราคาพิเศษ |
|
76,800.00 |
| รวมภาษี |
|
82,176.00 |
| ลดไป |
|
2.17 % |
|
|
|
H3C S5130S-28C-HI-GL L2 Ethernet Switch
24*10/100/1000BASE-T Ports
8*SFP Combo Ports
4*10G BASE-X SFP Plus Ports
1*Slot, dual power supplyslots
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Console port
- 1 × RJ-45 Out of Band console port
- 1 × Micro-USB(Type B) console port
- Only the Micro-USB console port is available when you connect both ports
Power consumption : Single AC: 30W, Single DC: 32W, Dual AC: 38W, Dual DC: 38W
VLAN : Port-based (up to 4094 VLANs), MAC-based, Protocol-based, QinQ and selective QinQ, Mapping, Voice, GVRP, Tagging, Jumbo frame support
Dimensions (W × D x H) : 440×360×43.6 mm
Weight : ≤ 4.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-52S-EI [P/N LS-5130S-52S-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
78,500.00 |
| ราคาพิเศษ |
|
77,000.00 |
| รวมภาษี |
|
82,390.00 |
| ลดไป |
|
1.91 % |
|
|
|
H3C S5130S-52S-EI-GL L2 Ethernet Switch
48*10/100/1000BASE-T Ports
4*1G/10G BASE-X SFP Plus Ports, (AC)
Switching capacity : 176Gbps
Forwarding Capacity : 131Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC:19W, MAX: AC:44W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×230×43.6 mm
Weight : ≤ 3.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-52ST-EI [P/N LS-5130S-52ST-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
78,500.00 |
| ราคาพิเศษ |
|
77,000.00 |
| รวมภาษี |
|
82,390.00 |
| ลดไป |
|
1.91 % |
|
|
|
H3C S5130S-52ST-EI-GL L2 Ethernet Switch
48*10/100/1000Base-T Ports
2*10G BASE-X SFP+ Ports
2*1/2.5/5/10G BASE-T Ports, (AC)
Switching capacity : 176Gbps
Forwarding Capacity : 132Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC:24.5W, MAX: AC:43W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×260×43.6 mm
Weight : ≤ 3.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-28C-PWR-HI [P/N LS-5130S-28C-PWR-HI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
80,900.00 |
| ราคาพิเศษ |
|
79,300.00 |
| รวมภาษี |
|
84,851.00 |
| ลดไป |
|
1.98 % |
|
|
|
H3C S5130S-28C-PWR-HI-GL L2 Ethernet Switch
24*10/100/1000BASE-T(PoE+) Ports
4*SFP Combo Ports
4*10G BASE-X SFP Plus Ports
1*Slot, dual power supply slots
Switching capacity : 128Gbps
Forwarding Capacity : 96Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Console port
- 1 × RJ-45 Out of Band console port
- 1 × Micro-USB(Type B) console port
- Only the Micro-USB console port is available when you connect both ports
Power consumption : Single AC: Upto 907W (including 810W PoE), Dual AC : Upto 918W (including 810W PoE)
VLAN : Port-based (up to 4094 VLANs), MAC-based, Protocol-based, QinQ and selective QinQ, Mapping, Voice, GVRP, Tagging, Jumbo frame support
Dimensions (W × D x H) : 440×460×43.6 mm
Weight : ≤ 5.4kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-52F-EI [P/N LS-5130S-52F-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
87,500.00 |
| ราคาพิเศษ |
|
85,900.00 |
| รวมภาษี |
|
91,913.00 |
| ลดไป |
|
1.83 % |
|
|
|
H3C S5130S-52F-EI-GL L2 Ethernet Switch
48*100/1000 BASE-X SFP Ports
2*GE Combo Ports
4*1G/10G BASE-X SFP Plus Ports, Without Power Supplies
Switching capacity : 176Gbps
Forwarding Capacity : 131Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption
- MIN: Single PSR75-12A: 45 W, Dual PSR75-12A: 48 W, Single PSR150-A1: 48 W, Single PSR150-D1: 51 W, Dual PSR150-A1: 55 W, Dual PSR150-D1: 57 W
- MAX: Single PSR75-12A: 69 W, Dual PSR75-12A: 72 W, Single PSR150-A1: 74 W, Single PSR150-D1: 84 W, Dual PSR150-A1: 95 W, Dual PSR150-D1: 95 W
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage
- AC: Rated voltage range: 100V~240V AC, 50/60Hz
- DC: Rated voltage range -54V～-57V DC
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×360×43.6 mm
Weight : ≤ 6.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-52ST-PWR-EI [P/N LS-5130S-52ST-PWR-EI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
103,500.00 |
| ราคาพิเศษ |
|
101,990.00 |
| รวมภาษี |
|
109,129.30 |
| ลดไป |
|
1.46 % |
|
|
|
H3C S5130S-52ST-PWR-EI-GL L2 Ethernet Switch
48*10/100/1000Base-T Ports
2*10G BASE-X SFP+ Ports
2*1/2.5/5/10G BASE-T Ports,(PoE+, AC)
Switching capacity : 176Gbps
Forwarding Capacity : 132Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Power consumption : MIN: AC: 34.5W, MAX: AC: 430W (PoE 370W)
Latency (64byte/µs) : GE: < 5µs 10GE < 3µs
Input Voltage : AC: Rated voltage range: 100V~240V AC, 50/60Hz
VLAN : Port-based, MAC-based, Protocol-based, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
Dimensions (W × D x H) : 440×320×43.6 mm
Weight : ≤ 6kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-52S-HI [P/N LS-5130S-52S-HI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
105,900.00 |
| ราคาพิเศษ |
|
104,000.00 |
| รวมภาษี |
|
111,280.00 |
| ลดไป |
|
1.79 % |
|
|
|
H3C S5130S-52S-HI-GL Ethernet Switch
48*10/100/1000BASE-T Ports
4*1G/10GBASE-X SFP Plus Ports, dual power supply slots
Switching capacity : 176Gbps
Forwarding Capacity : 132Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Console port
- 1 × RJ-45 Out of Band console port
- 1 × Micro-USB(Type B) console port
- Only the Micro-USB console port is available when you connect both ports
Power consumption : Single AC: 52W, Single DC: 53W, Dual AC: 55W, Dual DC: 57W
VLAN : Port-based (up to 4094 VLANs), MAC-based, Protocol-based, QinQ and selective QinQ, Mapping, Voice, GVRP, Tagging, Jumbo frame support
Dimensions (W × D x H) : 440×360×43.6 mm
Weight : ≤ 6.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
| |
H3C S5130S-52S-PWR-HI [P/N LS-5130S-52S-PWR-HI-GL] |
|
|
 |
| |
|
|
| ราคาปกติ |
|
125,500.00 |
| ราคาพิเศษ |
|
123,500.00 |
| รวมภาษี |
|
132,145.00 |
| ลดไป |
|
1.59 % |
|
|
|
H3C S5130S-52S-PWR-HI-GL Ethernet Switch
48*10/100/1000BASE-T PoE+ Ports
4*1G/10G BASE-X SFP Plus Ports, dual power supply slots
Switching capacity : 176Gbps
Forwarding Capacity : 132Mpps
CPU : 1 Core, 800MHz
Flash/SDRAM : 256MB/512MB
Console port
- 1 × RJ-45 Out of Band console port
- 1 × Micro-USB(Type B) console port
- Only the Micro-USB console port is available when you connect both ports
Power consumption : Single AC: Upto 1019W (including 900W PoE), Dual AC: Upto 1854W (including 1680W PoE)
VLAN : Port-based (up to 4094 VLANs), MAC-based, Protocol-based, QinQ and selective QinQ, Mapping, Voice, GVRP, Tagging, Jumbo frame support
Dimensions (W × D x H) : 440×460×43.6 mm
Weight : ≤ 9.5kg
5 Years Warranty Basic 9x5 10BD-Ship Service |
|
|
|
|
|
|
|
