Eaton 9E 2000VA UPS Tower Standard SET

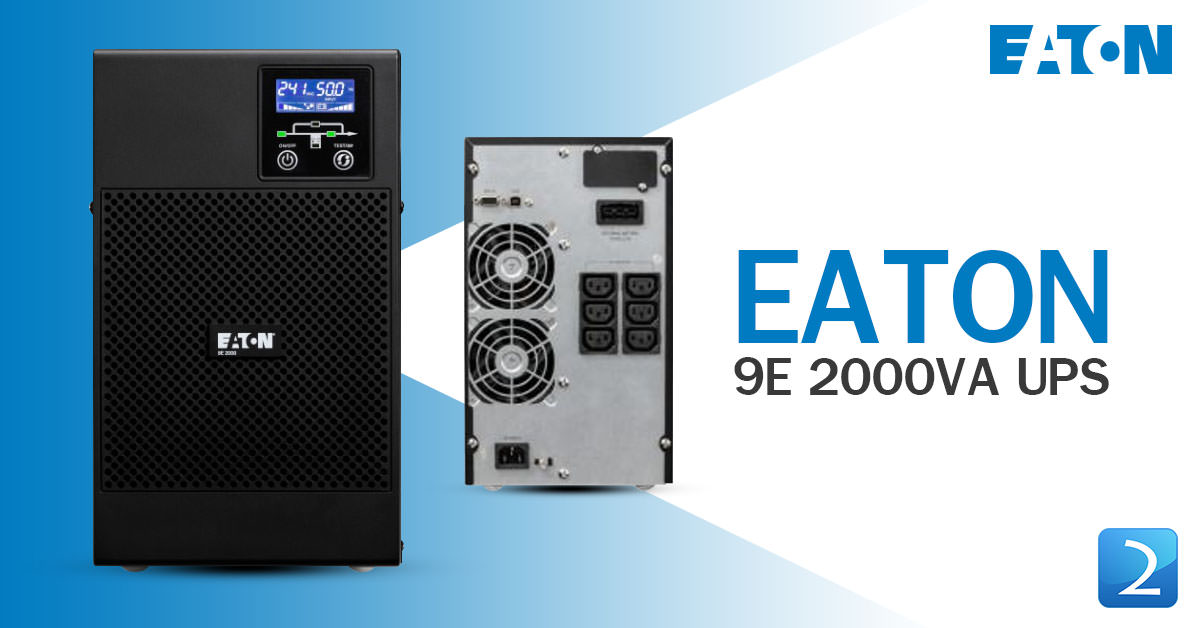

Eaton 9E 2000VA UPS Tower
Technical specifications Rating (VA/W) : 2000VA / 1600W
Format : Tower
Electrical characteristics Technology : Online double conversion
Input voltage ranges without using batteries : 100 – 300V
Output voltage : 208 / 220 / 230 / 240V ±1%
Output THDU : <2% for 100% linear load, <6% for 100% non-linear load
Connections Input : IEC C14
Outputs Tower model : 6 x IEC C13
Communication Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously
Communication slot : 1 slot for Network-MS, Modbus-MS or Relay-MS cards
Software : Intelligent Power Software
Warranty : 3 Yrs On-Site Service by Eaton (Thailand)
Warranty
:
3 Yrs On-Site Service by Eaton (Thailand)
วิธีการจัดส่ง
:
ตรวจสอบ Stock สินค้า http://schema.org/OutOfStock
อัพเดทล่าสุด
:
28 พ.ค 24
ITEM DESCRIPTION Eaton 9E 2000VA UPS Tower
Technical specifications Rating (VA/W) : 2000VA / 1600W
Format : Tower
Electrical characteristics Technology : Online double conversion
Input voltage ranges without using batteries : 100 – 300V
Output voltage : 208 / 220 / 230 / 240V ±1%
Output THDU : <2% for 100% linear load, <6% for 100% non-linear load
Input frequency range : 40Hz – 70Hz, 50 / 60Hz autoselection
Efficiency at inverter mode : up to 91% in online mode, up to 97.5% in high efficiency mode (ECO mode)
Overload capacity (in on-line mode) : 105% – 130% : 60s, 130% – 150% : 10s, >150% : ≥300ms
Recharge time to 90% battery capacity : 4 hours
Extendable backup time : YES
Compatible EBM type : 9EEBM72
Connections Input : IEC C14
Outputs Tower model : 6 x IEC C13
Typical backup times at 50%/100% Load (minutes) 9E : 16 / 6.4
9E + 1 EBM : 78 / 35
9E + 4 EBM : 243 / 119
Communication Communication ports : 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously
Communication slot : 1 slot for Network-MS, Modbus-MS or Relay-MS cards
Software : Intelligent Power Software
Operating conditions, Standards and Approvals Operating temperature : 0 to 40°C
Noise level : 40dB @ typical load
Safety : IEC/EN 62040-1
EMC, Performance : IEC/EN 62040-2
Approvals : CE, CB report (TUV)
Dimensions D x H x W / Weight UPS Dimensions (mm) : 399 x 330 x 190
UPS Weight (kg) : 22.4kg
EBM dimensions (mm) (for 2000 / 3000VA) : 399 x 330 x 190
EBM weight (kg) : 35.8kg
Warranty : 3 Yrs On-Site Service by Eaton (Thailand)
