| ราคาปกติ |
|
3,975.00 |
| ราคาพิเศษ |
|
2,800.00 |
| รวมภาษี |
|
2,996.00 |
| ลดไป |
|
29.56 % |
|
|
|

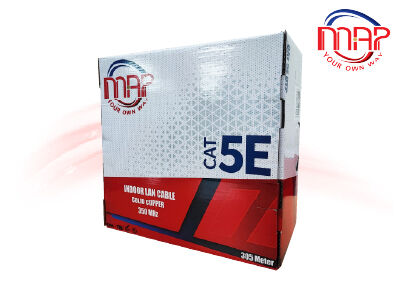

MAP LAN CABLE 24AWG U/UTP CAT5E PVC, INDOOR WHITE (0.45mm)
Conductor:
Material : Bare Copper Solid
Size : 24AWG*4P
Construction : 1/0.45±0.01MM
Insulation:
Material : HDPE
Avg.Thickness : 0.20MM
Min. Thickness : 0.19MM
Diameter : 0.91±0.03MM
Inner Layer Direction : S
Pitch : 25mm underneath
Outside Layer Direction : S
Pitch : 150mm underneath
Filler Material : Nylon
Jacket:
Material : PVC
Avg.Thickness : 0.55MM
Min. Thickness : 0.50MM
Diameter : 5.1±0.02MM
Color : White
Packing 305M / BOX
ELECTRICAL PROPERTIES:
Solid conductor resistance : ≤ 11.5Ω/100M at 20℃
Insulation Resistance : Min.5000mega ohms-km at 20℃
Dielectric Test : 1000V DC/1min;No Breakdown
Delay skew : ≤45nS
Propagation speed : NVP 69%
Frequency : 350Mhz
Impedance : 100Ω±15 |
|
|
|
