HPE Aruba AP-503
Aruba Access Point-503 (RW) Dual Radio 2×2:2 802.11ax Wi-Fi 6 Campus Access Point
Technical Specifications Interface :
- RJ-45 : Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
- POE-PD : 48Vdc (nominal) 802.3af POE (class 3 or higher)
- 802.3az Energy Efficient Ethernet (EEE)
- USB 2.0 host interface (Type A connector) Capable of sourcing up to 100mA / 500mW to an attached device
Wi-Fi Radio :
- Dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2×2 MIMO
Wi-Fi Antennas :
- Integrated downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 1.7dBi in 2.4GHz and 4.8dBi in 5GHz.
Maximum (worst-case) power consumption: 10.9W
Product type : Access point
Dimensions : 145mm (W) x 145mm (D) x 51mm (H) (without mount bracket)
Weight : 255g
Aruba’s hardware limited lifetime warranty
HPE Aruba AP-303P (RW) Unified AP [P/N R0G68A]
ราคาปกติ
10,000.00
ราคาพิเศษ
8,690.00
รวมภาษี
9,298.30
ลดไป
13.10 %

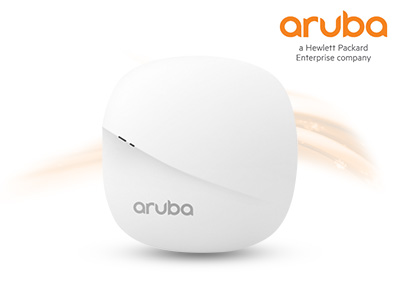

HPE Aruba AP-303P (RW) Unified AP
Technical Specifications Ports/Interface : - 2 x 10/100/1000BASE-T Ethernet network interface (RJ-45) and micro-USB
Wi-Fi Radio Specifications : - a maximum concurrent data rate of 867 Mbps in the 5GHz band and 300 Mbps in the 2.4GHz
Mounting: - Ceiling, wall, wiring box, using range of mounts and kits. Basic mounts ship with product
Power Consumption : - 11.3W PoE or 11.5W DC, maximum (excludes power to support PoE-PSE functionality)
Wi-Fi Antennas : - Two internal vertically polarized, dual-band downtilt, omni-directional antennas.
Product type : Access point
Dimensions : 150mm (W) x 150mm (D) x 35mm (H) Weight : 280 g
Warranty : Life Time Carry-in Warranty by HPE Thailand
HPE Aruba AP-505 [P/N R2H28A]
ราคาปกติ
26,400.00
ราคาพิเศษ
16,990.00
รวมภาษี
18,179.30
ลดไป
35.64 %

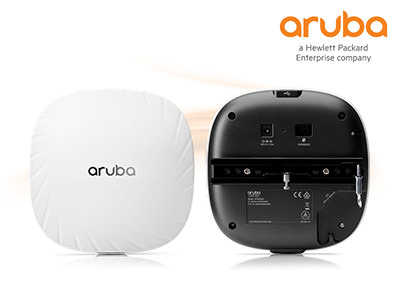

HPE Aruba AP-505 (RW) Unified AP
Technical Specifications Ports :
- 1 x 10/100/1000BASE-T
Wi-Fi Radio :
- Dual (2.4 GHz and 5 GHz)
AP type :
- Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO
Maximum number of associated client devices :
- Up to 256 associated client devices per radio
Maximum (worst-case) power consumption in idle mode: :
- 4.3W (DC) or 6.2W (POE)
Product type : Access point
Dimensions : 160mm (W) x 161mm (D) x 37mm (H)
Weight : 500 g
Aruba Limited Lifetime Warranty
HPE Aruba AP 365 (RW) [P/N JX966A]
ราคาปกติ
49,355.00
ราคาพิเศษ
33,100.00
รวมภาษี
35,417.00
ลดไป
32.93 %

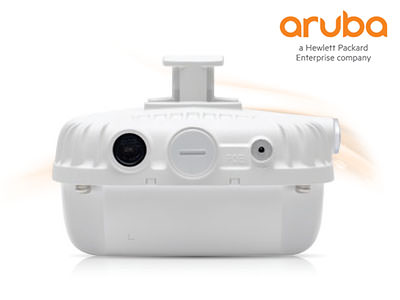

HPE Aruba AP-365 (RW) Outdoor AP
Ports/Interface :
- One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
Wi-Fi Radio Specifications :
- a maximum data rate of 866 Mbps in the 5-GHz band
- 400 Mbps in the 2.4-GHz band
Wi-Fi Antennas :
- Integrated Omni antennas (H and V polarized)
Power sources and consumption :
- Maximum power consumption: 12.5 watts
Mode :
- Controller-managed mode
- Aruba Instant mode
- Spectrum analysis
- Hybrid AP
- Air monitor (AM)
Dimensions : 165mm (W) x 165mm (D) x 110mm (H)
Weight : 800 g
Life Time Carry-in Warranty by HPE Aruba Thailand (5 ปีหลังเลิกผลิต)
HPE Aruba AP 367 (RW) [P/N JX973A]
ราคาปกติ
49,355.00
ราคาพิเศษ
33,100.00
รวมภาษี
35,417.00
ลดไป
32.93 %
HPE Aruba AP-367 (RW) Outdoor AP
Ports/Interface :
- One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
Wi-Fi Radio Specifications :
- a maximum data rate of 866 Mbps in the 5-GHz band
- 400 Mbps in the 2.4-GHz band
Wi-Fi Antennas :
- Integrated Directional antennas (+/-45 polarized)
Power sources and consumption :
- Maximum power consumption: 12.5 watts
Mode :
- Controller-managed mode
- Aruba Instant mode
- Spectrum analysis
- Hybrid AP
- Air monitor (AM)
Dimensions : 165mm (W) x 165mm (D) x 110mm (H)
Weight : 800 g
Life Time Carry-in Warranty by HPE Aruba Thailand (5 ปีหลังเลิกผลิต)
HPE Aruba AP 375 (RW) [P/N JZ172A]
ราคาปกติ
70,322.00
ราคาพิเศษ
46,900.00
รวมภาษี
50,183.00
ลดไป
33.31 %

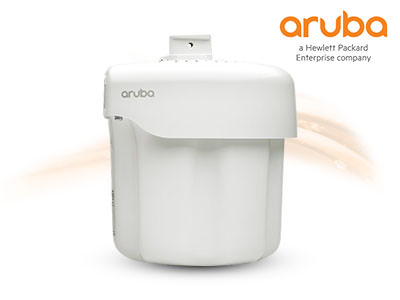

HPE Aruba AP-375 (RW) Outdoor 11ac AP
Ports/Interface :
- One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- One 1000BASE-X SFP Port
Wi-Fi Radio Specifications :
- a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band
- 300 Mbps in the 2.4 GHz band
Wi-Fi Antennas :
- Internal Omni Antennas 4.6 dBi, Internal Omni Antennas 4.0 dBi
Power sources and consumption :
- Worst-case power consumption from the AP: 23W
Mode :
- Controller-managed mode
- Aruba Instant mode
- Remote AP (RAP)
- Air monitor (AM)
Dimensions : 23 cm (W) x 24 cm (D) x 19 cm (H) with aesthetic cover
Weight : 2.7 kg
Life Time Carry-in Warranty by HPE Aruba Thailand (5 ปีหลังเลิกผลิต)
HPE Aruba AP-535 [P/N JZ336A]
ราคาปกติ
57,000.00
ราคาพิเศษ
52,010.00
รวมภาษี
55,650.70
ลดไป
8.75 %

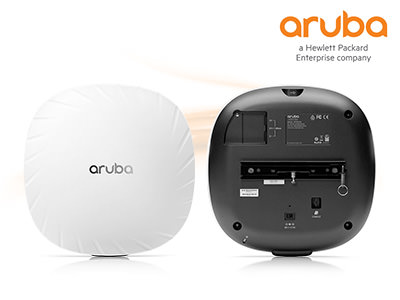

HPE Aruba AP-535 (RW) Unified AP
Technical Specifications Ports :
- (2) HPE SmartRate RJ-45 port (maximum negotiated speed 5Gbps)
Wi-Fi Antennas :
- Four integrated dual-band downtilt omni-directional antennas for 4×4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz
Wi-Fi radio :
- AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 4x4 MIMO
Power sources :
- POE powered (802.3bt or dual 802.3at): 30W POE powered (802.3at, IPM enabled): 25W DC powered: 29W
AP Mounting :
- Mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the Aruba mount kits (sold separately)
Product type : Access point
Dimensions : 240mm (W) x 240mm (D) x 57mm (H)
Weight : 1,270 g
