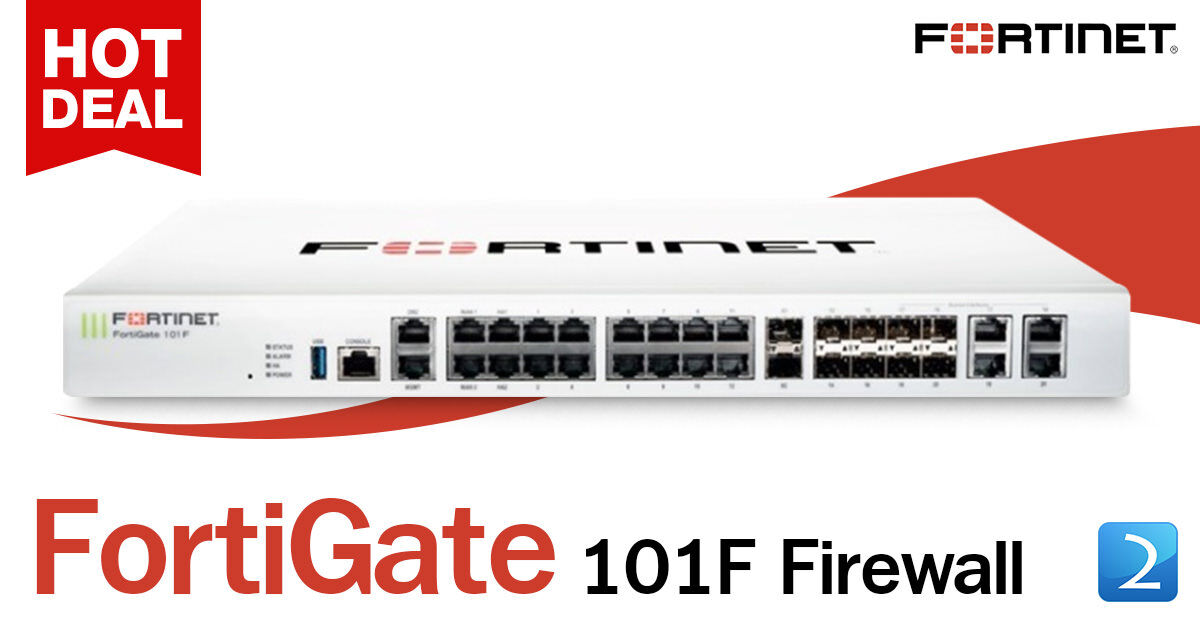

Interfaces - 1x USB Port
- 1x Console Port
- 2x GE RJ45 MGMT/DMZ Ports
- 2x GE RJ45 WAN Ports
- 2x GE RJ45 HA Ports
- 12x GE RJ45 Ports
- 2x 10 GE SFP+ FortiLink Slots
- 4x GE SFP Slots
- 4x GE RJ45/SFP Shared Media Pairs
Include 1Yr Hardware plus 24x7 Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web Filtering, Antispam Service, and 24x7 FortiCare) ไม่รวมค่าบริการติดตั้ง
Security Services - FortiGuard IPS Service
- FortiGuard Anti-Malware Protection (AMP) —Antivirus, Mobile Malware, Botnet, CDR, Virus Outbreak Protection and
FortiSandbox Cloud Service
- FortiGuard Web Security — URL and web content, Video and Secure DNS Filtering
- FortiGuard Anti-Spam
- FortiCare Premium
แถมฟรี HIKVISION กล้องวงจรปิดไร้สาย ขนาด 2 ล้านพิกเซล
Model DS-J142I(STD)/NKS422W00H 2MP H.265 TWO bullet WiFi NVS Kit มูลค่าปกติ 3,940 บาท
พร้อมรับสิทธิพิเศษในการเข้าร่วม Free Training Fortinet Fast Track Workshop "Introduction to Fortinet Network Security" How can organizations deploy FortiGate to meet the requirements of today’s multi-faceted and multi-device networks?
เนื้อหาหลักสูตร:
- Install a FortiGate device in a network
- Configure basic routing
- Create security policies
- Apply security scanning
- Configure local user authentication
- Use the CLI
- Configure the Fortinet Security Fabric
- Configure SSL VPN in web and tunnel mode
รับสิทธิ์พิเศษ แลกซื้อ [M3-60615] MAP 19" Modern Close Rack Serie. AC, 15U, 60x60 cm. จากราคาปกติ 11,500 บาทลดเหลือเพียง 7,900 บาท สินค้ารวมพร้อมอุปกรณ์ครบชุด - Ventilating Fan 4" x 1 Heavy Duty
- PDU 6 outlets, LED surge protector, Cable 3M
- Fix Shelf For Wall Rack Depth 25cm
FORTINET FortiAP Model FAP-221E-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-221E-V
The FortiAP 221E are medium-density 802.11ac Wave 2 access points. These enterprise-class access points are ideal for medium-density environments such as an office or classroom with performance throughput of up to 867 Mbps. 802.11ac Wave 2 | Dual Radio 2.4 and 5 GHz | 4 Internal Antennas 2x2 MU-MIMO | Up to 400 + 867 Mbps
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 2 + 1 BLE
- Number of Antennas: 4 Internal + 1 Internal BLE
- Antenna Type and Peak Gain: Patch: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
- Maximum Date Rate
Radio 1: up to 400 Mbp
Radio 2: up to 867 Mbps
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces
- 1x10/100/1000 Base-T RJ45
- Power over Ethernet (PoE): IEEE 802.3af
- Simultaneous SSIDs: 16 (14 if background scanning enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/DeviceAuthentication: WPATM, WPA2TM, and WPA3TM with 802.1x or preshared key, WEP , Web Captive Portal, MAC blocklist & allowlist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
- Including 1-port Gigabit PoE power injector, 802.3af 15.4 W, 10/100/1000
สินค้าพร้อมจัดส่งทันที
หมายเหตุ: ราคานี้ไม่รวมค่าติดตั้ง
FORTINET FortiAP Model FAP-223E-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-223E-V
The FAP-223E-V is a Fortinet FortiAP indoor wireless access point designed for medium-density environments. It is an 802.11ac Wave 2 access point with dual radios, offering a maximum data rate of up to 867 Mbps. It features internal antennas, one 10/100/1000 RJ45 port, and includes a ceiling/wall mount kit. It also has Bluetooth and BLE capabilities.
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 2 + 1 BLE
- Number of Antennas: 4 Internal + 1 Internal BLE
- Antenna Type and Peak Gain: Patch: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
- Maximum Date Rate
Radio 1: up to 400 Mbps
Radio 2: up to 867 Mbps
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces
- 1x10/100/1000 Base-T RJ45
- Power over Ethernet (PoE): IEEE 802.3af
- Simultaneous SSIDs: 16 (14 if background scanning enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/Device Authentication: WPATM, WPA2TM, and WPA3TM with 802.1x or preshared key, WEP,Web Captive Portal, MAC blacklist & whitelist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
- Including 1-port Gigabit PoE power injector, 802.3af 15.4 W, 10/100/1000
สินค้าพร้อมจัดส่งทันที
ไม่รวมค่าติดตั้ง
FORTINET FortiAP Model FAP-231G-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-231G-V
Fortinet FortiAP 231G wireless access point designed for indoor use.
These enterprise class extended frequency band Wi-Fi 6E indoor APs provide three radios and two spatial streams.
These access points support the 6 GHz band, OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. The APs can provide 24/7 scanning across all bands while still providing access on both the 2.4 GHz and 5 GHz bands or 2.4 Ghz and dual 5 GHz service or the AP can be configured to provide simultaneous access on 2.4 GHz, 5 GHz,
and the 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and locationing applications.
This access point is managed centrally by a FortiGate security appliance or through FortiLAN Cloud.
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 3 + 1 BLE
- Number of Antennas: Internal x2 Dual band Wi-Fi + x2 Tri-band Wi-Fi & Scanning + 1 Single band 2.4GHz BLE/ZigBee
- Antenna Type and Peak Gain: PIFA antenna.
Dual band: 4.5 dBi for 2.4GHz, 5.5 dBi for 5 GHz
Tr-band: 4.5 dBi for 2.4GHz, 5.5 dBi for 5 GHz & 5.5dBi for 6GHz band
BLE antenna: 4.0dBi for 2.4Ghz
- Maximum Date Rate
Radio 1: up to 574 Mbps
Radio 2: up to 1201 Mbps
Radio 3: Up to 2401 Mbps
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertizement @10 dBm max TX power
Interfaces
- 1 100/1000/2500 Base-T RJ45, 1 10/100/1000 Base-T RJ45, 1x Type 3.0 USB, 1 RS-232 RJ45 Serial Port
- Power over Ethernet (PoE): 1 x 802.3at PoE default
- Simultaneous SSIDs: Up to 8 per client serving radio (7 if background scanning is enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/Device Authentication: WPATM, WPA2TM, and WPA3TM with 802.1x or preshared key, WEP,Web Captive Portal, MAC blocklist & allowlist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
ไม่รวมค่าติดตั้ง
FORTINET FortiAP Model FAP-233G-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-233G-V
Fortinet FortiAP 233G wireless access point designed for indoor use.
These enterprise class extended frequency band Wi-Fi 6E indoor APs provide three radios and two spatial streams.
These access points support the 6 GHz band, OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. The APs can provide 24/7 scanning across all bands while still providing access on both the 2.4 GHz and 5 GHz bands or 2.4 Ghz and dual 5 GHz service or the AP can be configured to provide simultaneous access on 2.4 GHz, 5 GHz,
and the 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and locationing applications.
This access point is managed centrally by a FortiGate security appliance or through FortiLAN Cloud.
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 3 + 1 BLE
- Number of Antennas: External x2 Dual band Wi-Fi + x2 Tri-band Wi-Fi and Scanning (permanently attached) + Internal 1 Single band 2.4GHz BLE/ZigBee
- Antenna Type Support:
RP-SMA (2 total)
Dual Band Antenna (2)
- Antenna Type and Peak Gain: Omni Directional antenna.
Dual band: 4.5 dBi for 2.4GHz, 4.5 dBi for 5 GHz.
Tr-band: 4.5 dBi for 2.4GHz, 4.5 dBi for 5 GHz and 4.5dBi for 6GHz band BLE Omni Directional antenna.
Single band: 4.0dBi for 2.4GHz
- Maximum Date Rate
Radio 1: up to 574 Mbps
Radio 2: up to 1201 Mbps
Radio 3: Up to 2401 Mbps
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertizement @10 dBm max TX power
Interfaces
- 1 100/1000/2500 Base-T RJ45, 1 10/100/1000 Base-T RJ45, 1x Type 3.0 USB, 1 RS-232 RJ45 Serial Port
- Power over Ethernet (PoE): 1 x 802.3at PoE default
- Simultaneous SSIDs: Up to 8 per client serving radio (7 if background scanning is enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/Device Authentication: WPATM, WPA2TM, and WPA3TM with 802.1x or preshared key, WEP,Web Captive Portal, MAC blocklist & allowlist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
ไม่รวมค่าติดตั้ง
FORTINET FortiAP Model FAP-431F-V
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments.
Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FORTINET FortiAP Model FAP-431F-V
The Fortinet FortiAP 431F is an enterprise-class, indoor wireless access point (AP) that supports the Wi-Fi 6 standard (802.11ax). It features a tri-radio design, including two 4x4 MU-MIMO radios for 5 GHz and one 2x2 MU-MIMO radio for 2.4 GHz and 5 GHz. It also includes a Bluetooth Low Energy (BLE) radio for location-based services and beacons.
Hardware
- Hardware Type: Indoor AP
- Number of Radios: 3 + 1 BLE
- Number of Antennas: 5 Internal + 1 BLE Internal
- Antenna Type and Peak Gain: PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
- Maximum Date Rate
Radio 1: up to 1147 Mbps
Radio 2: up to 2402 Mbps
Radio 3: scan only
- Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power
Interfaces
- 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port
- Power over Ethernet (PoE): 802.3at PoE default, 1 port powered by 802.3at or 2 ports powered by 802.3af
- Simultaneous SSIDs: Up to 16 (14 if background scanning enabled)
- EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
- User/Device Authentication: WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP,
Web Captive Portal, MAC blocklist and allowlist
- IEEE Standards: 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3af, 802.3az
- Limited Lifetime Warranty by Fortinet
- Including 1-port Gigabit PoE power injector, 802.3af 15.4 W, 10/100/1000
หมายเหตุ: ราคานี้ไม่รวมค่าติดตั้ง
