| ราคาปกติ |
|
70,577.20 |
| รวมภาษี |
|
53,393.00 (Including VAT) |
| ก่อนภาษี |
|
49,900.00 (Excluding VAT) |
| ลดไป |
|
24.35% |
|
|

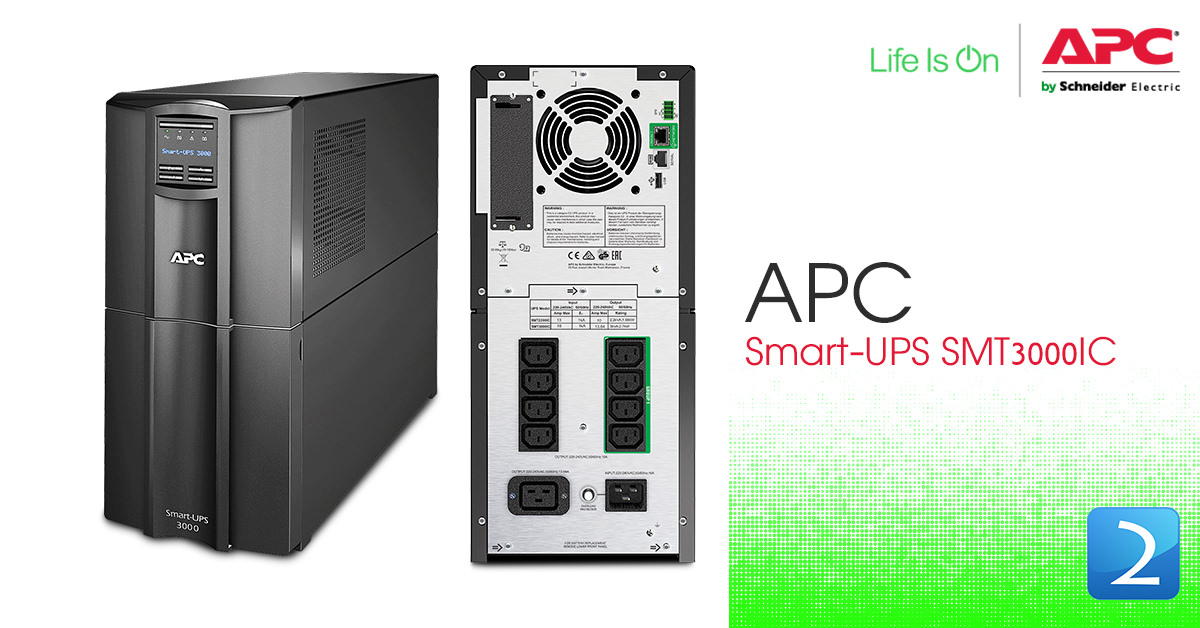

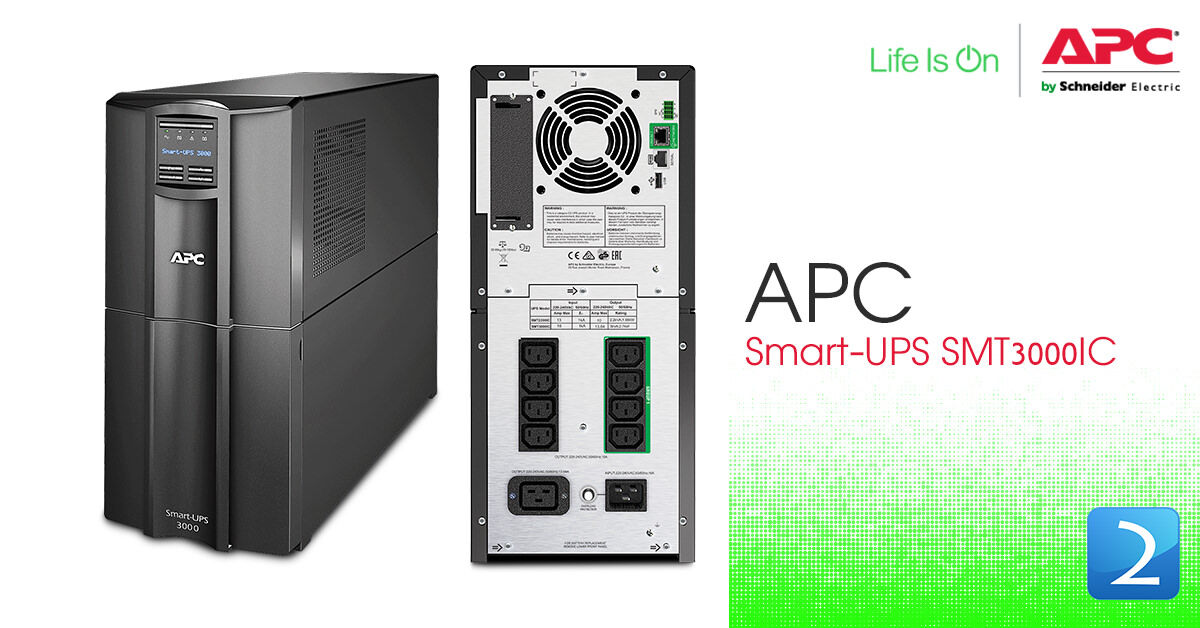

APC Smart-UPS 3000VA LCD 230V with SmartConnect Standard SET
APC Smart-UPS 3000VA LCD 230V with SmartConnect
Output Connections : (1) IEC 320 C19 (Battery Backup), (2) IEC Jumpers (Battery Backup), (8) IEC 320 C13 (Battery Backup)
Topology : Line Interactive
Waveform type : Sine wave
Max Configurable Power (Watts) : 2.7kWatts / 3.0kVA
Input Connections : IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Control panel : Multi-function LCD status and control console
Interface Port(s) : SmartSlot, USB
Warranty : 3 Year Warranty Onsite Swap by Schneider Electric (Thailand)
**สิ่งที่ shipped มาด้วยในกล่อง : CD with software, Documentation CD, USB cable**
**รับทำห้อง Datacenter แบบครบวงจร โดยใช้อุปกรณ์ ถูกต้องตรงตามมาตรฐานของ APC**
| Warranty |
: |
3 Year Warranty Onsite Swap by Schneider Electric (Thailand) |
| วิธีการจัดส่ง |
: |
ตรวจสอบ Stock สินค้า http://schema.org/OutOfStock |
| อัพเดทล่าสุด |
: |
26 มิ.ย 24 |
|
|
 |
 |
ITEM DESCRIPTION
Output
Output power capacity : 2.7kWatts / 3.0kVA
Max Configurable Power (Watts) : 2.7kWatts / 3.0kVA
Nominal Output Voltage : 230V
Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion : Less than 5%
Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
Other Output Voltages : 220, 240
Topology : Line Interactive
Waveform type : Sine wave
Output Connections : (1) IEC 320 C19 (Battery Backup), (2) IEC Jumpers (Battery Backup), (8) IEC 320 C13 (Battery Backup)
Transfer Time : 6ms typical : 10ms maximum
Input
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Input voltage range for main operations : 160 - 286V
Input voltage adjustable range for mains operation : 151 - 302V
Number of Power Cords : 1
Other Input Voltages : 220, 240
Batteries & Runtime
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time : 3hour(s)
Replacement Battery : RBC55
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Extendable Run Time : 1
Communications & Management
Interface Port(s) : SmartSlot, USB
Control panel : Multi-function LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) : Yes
Available SmartSlot™ Interface Quantity : 1
Surge Protection and Filtering
Surge energy rating : 365Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height : 435MM, 43.5CM
Maximum Width : 197MM, 19.7CM
Maximum Depth : 544MM, 54.4CM
Net Weight : 52.5KG
Shipping weight : 63.7KG
Shipping Height : 699MM, 69.9CM
Shipping Width : 381MM, 38.1CM
Shipping Depth : 762MM, 76.2CM
Color : Black
Units per Pallet : 9.0
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0-3000meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0-15000meters
Audible noise at 1 meter from surface of unit : 53.0dBA
Online thermal dissipation : 375.0BTU/hr
Conformance
Approvals : CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Sustainable Offer Status
RoHS : Compliant
REACH : REACH: Contains No SVHCs
|
 |
|
 |
|
