| ราคาปกติ |
|
32,207.00 |
| รวมภาษี |
|
24,075.00 (Including VAT) |
| ก่อนภาษี |
|
22,500.00 (Excluding VAT) |
| ลดไป |
|
25.25% |
|
|

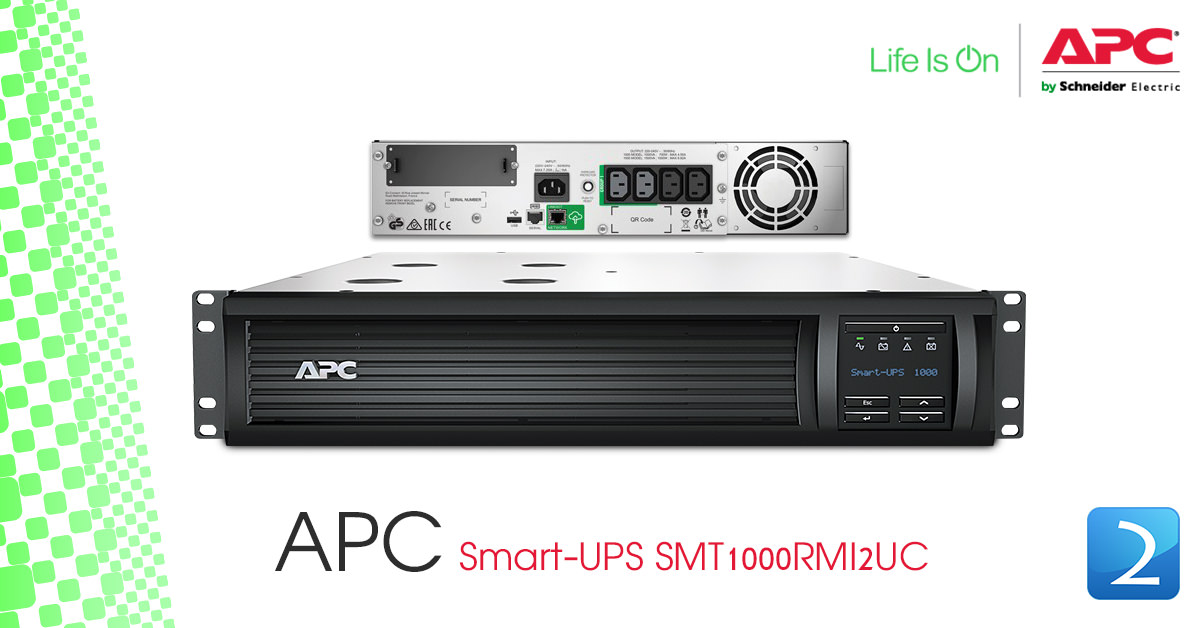

APC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect Standard SET
APC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect
Output Connections : (2) IEC Jumpers (Battery Backup), (4) IEC 320 C13 (Battery Backup)
Topology : Line Interactive
Waveform type : Sine wave
Max Configurable Power (Watts) : 700Watts / 1.0kVA
Input Connections : IEC-320 C14
Control panel : Multi-function LCD status and control console
Interface Port(s) : RJ-45 Serial, SmartSlot, USB
Warranty : 3 Year Warranty Onsite Swap by Schneider Electric (Thailand)
**สิ่งที่ shipped มาด้วยในกล่อง : CD with software, Documentation CD, Installation guide, Rack Mounting support rails, USB cable**
**รับทำห้อง Datacenter แบบครบวงจร โดยใช้อุปกรณ์ ถูกต้องตรงตามมาตรฐานของ APC**
| Warranty |
: |
3 Year Warranty Onsite Swap by Schneider Electric (Thailand) |
| วิธีการจัดส่ง |
: |
ตรวจสอบ Stock สินค้า http://schema.org/OutOfStock |
| อัพเดทล่าสุด |
: |
05 ก.ค 24 |
|
|
 |
 |
ITEM DESCRIPTION
Output
Output power capacity : 700Watts / 1.0kVA
Max Configurable Power (Watts) : 700Watts / 1.0kVA
Nominal Output Voltage : 230V
Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion : Less than 5%
Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
Other Output Voltages : 220, 240
Topology : Line Interactive
Waveform type : Sine wave
Output Connections : (2) IEC Jumpers (Battery Backup), (4) IEC 320 C13 (Battery Backup)
Transfer Time : 6ms typical : 10ms maximum
Input
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : IEC-320 C14
Input voltage range for main operations : 160 - 286V
Input voltage adjustable range for mains operation : 151 - 302V
Number of Power Cords : 1
Other Input Voltages : 220, 240
Batteries & Runtime
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time : 3hour(s)
Replacement Battery : APCRBC132
Expected Battery Life (years) : 4 - 6
RBC Quantity : 1
Communications & Management
Interface Port(s) : RJ-45 Serial, SmartSlot, USB
Control panel : Multi-function LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) : Optional
Available SmartSlot™ Interface Quantity : 1
Surge Protection and Filtering
Surge energy rating : 459Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height : 86MM, 8.6CM
Maximum Width : 432MM, 43.2CM
Maximum Depth : 477MM, 47.7CM
Rack Height : 2U
Net Weight : 28.18KG
Shipping weight : 31.45KG
Shipping Height : 251MM, 25.1CM
Shipping Width : 594MM, 59.4CM
Shipping Depth : 603MM, 60.3CM
Color : Black
Units per Pallet : 8.0
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0-3000meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0-15000meters
Audible noise at 1 meter from surface of unit : 45.0dBA
Online thermal dissipation : 56.0BTU/hr
Conformance
Approvals : CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE
Sustainable Offer Status
RoHS : Compliant
REACH : REACH: Contains No SVHCs
Other Environmental Compliance : China RoHS
|
 |
|
 |
|
